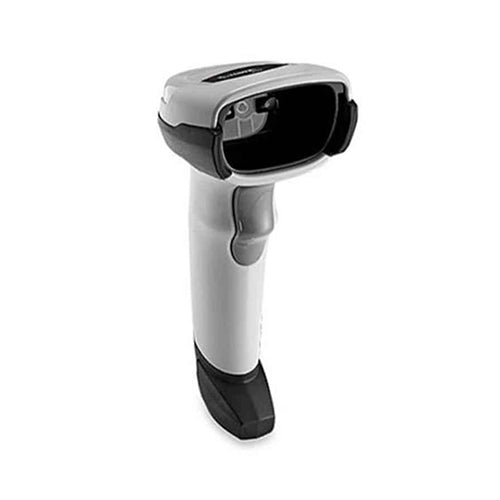

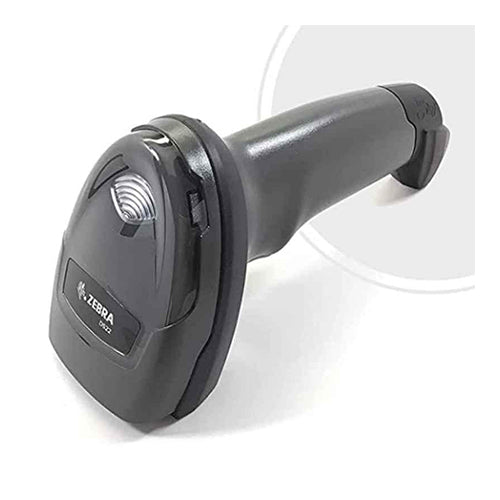

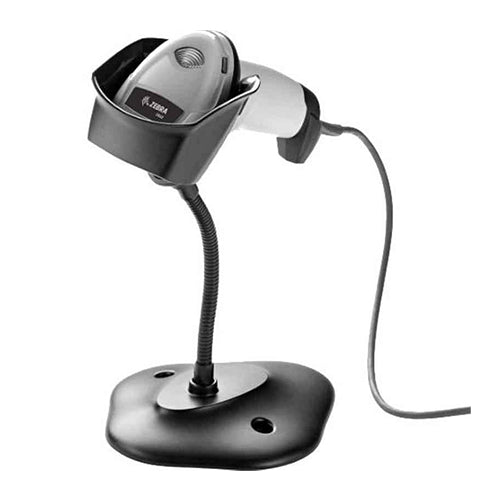

The Zebra DS2208 1D Wired Barcode Scanner is a versatile and highly efficient scanning solution designed for environments requiring precision and speed. This scanner is ideal for industries like retail, healthcare, and logistics, providing rapid and accurate decoding of 1D barcodes.
Its wired connectivity ensures a stable connection, eliminating concerns about battery life or wireless interference, while its ergonomic design ensures comfortable use during extended operations. Built with Zebra’s advanced imaging technology, it can easily capture barcodes from various angles and distances, even if they are damaged or poorly printed.
Features :
Advantages :
Applications :
The Zebra DS2208 1D Wired Barcode Scanner is a versatile and highly efficient scanning solution designed for environments requiring precision and speed. This scanner is ideal for industries like retail, healthcare, and logistics, providing rapid and accurate decoding of 1D barcodes.
Its wired connectivity ensures a stable connection, eliminating concerns about battery life or wireless interference, while its ergonomic design ensures comfortable use during extended operations. Built with Zebra’s advanced imaging technology, it can easily capture barcodes from various angles and distances, even if they are damaged or poorly printed.
Features :
Advantages :
Applications :
| Physical Characteristics | |
| Dimensions |
Corded DS2208: |
| Weight |
Corded DS2208: 5.7 oz. / 161.6 g Cordless DS2278: 7.5 oz. / 214 g Presentation Cradle: 5.2 oz. / 151 g |
| Input Voltage Range | DS2208/DS2278 and Cradle: 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply |
| Current |
Corded DS2208 Operating Current at Nominal Voltage (5.0V): 250 mA (typical). (Note: Auto-Aim and Illumination on Acquiring Image) Corded DS2208 Standby Current (idle) at Nominal Voltage (5.0V): 150 mA (typical). (Note: Auto-Aim On)
Presentation Cradle and Micro USB Cable: 500 mA (typical) Standard USB; 1100 mA (typical) BC 1.2 USB |
| Color | Nova White, Twilight Black |
| Supported Host Interfaces | USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485 |
| Keyboard Support | Supports more than 90 international keyboards |

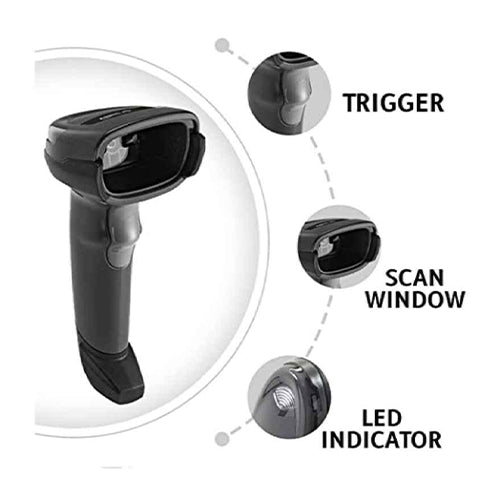

| User Indicators | Direct Decode Indicator; good decode LEDs; Rear view LEDs; beeper (adjustable tone and volume) |
| Performance Characteristics | |
| Motion Tolerance (Handheld) | Up to 5 in./13 cm. per second for 13 mil UPC |
| Swipe Speed (Hands-Free) | Up to 30.0 in./76.2 cm. per second for 13 mil UPC |
| Light Source | Aiming Pattern: Linear 624nm Amber LED |
| Illumination | (2) 645nm Super-Red LEDs |
| Imager Field of View | 32.8° H x 24.8° V Nominal |
| Image Sensor | 640 x 480 pixels |
| Minimum Print Contrast | 25% minimum reflective difference |
| Skew/Pitch/Roll Tolerance | +/- 65°; +/- 65°; 0-360° |
| Minimum Element Resolution | Code 39 – 4.0 mil; Code 128 – 4.0 mil; Data Matrix – 6.0 mil; QR Code – 6.7 mil |
| User environment | |
| Operating Temperature | DS2208/DS2278
Imagers: 32.0° to 122.0° F/0.0° to 50.0° C Presentation Cradle: 32.0° to 104.0° F/0.0° to 40.0° C |
| Storage Temperature | -40.0° to 158.0° F/-40.0° to 70.0° C |
| Humidity | 5% to 95% RH, non-condensing |
| Drop Specification | Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete |
| Tumble Specification | Designed to withstand 250 tumbles in 1.5 ft./.5 m tumbler1 |
| Environmental Sealing | IP52 |
| Electrostatic Discharge (ESD) | DS2208/DS2278 and CR2278 Cradle: ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect |
| Ambient Light Immunity | 0 to 10,000 Foot Candles/0 to 107,600 Lux |
| Radio specifications | |
| Bluetooth Radio | Standard Bluetooth Version 4.0 with BLE: Class 2 33 ft. (10.0m), Serial Port and HID Profiles; output power adjustable down from 2.0 dBm in 8 Steps |
| Battery | |
| Battery Capacity/ Battery Type | 2,400 mAh Li-Ion Battery |
| Scans Per Battery Charge2 | 110,000 scans at 60 Scans per Minute or 50,000 scans at 10 Scans per Minute |
| Operating Time Per Full Charge2 | 84.0 Hours |
| Charge Time (from Empty) | 14 Hour Shift Hours / Full Charge Hours |
| Standard USB | 14 Hour Shift Hours: 4 Full Charge Hours: 17 |
| BC1.2 USB | 14 Hour Shift Hours: 1 Full Charge Hours: 5 |
| External 5V Source | 14 Hour Shift Hours: 1 Full Charge Hours: 5 |
| Micro USB | 14 Hour Shift Hours: 1 Full Charge Hours: 7 |
| BC1.2 Micro USB | 14 Hour Shift Hours: 1 Full Charge Hours: 4 |
| Regulatory | |
| Electrical Safety | EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/ CSA-C22.2 No. 60950-1-07 |
| Environmental | RoHS EN 50581 |
| LED Safety | IEC 62471 |
| IT Emissions | EN 55032 (Class B) |
| IT Immunity | EN 55024 |
| Harmonic Current Emissions | EN 61000-3-2 |
| Voltage Fluctuation and Flicker | EN 61000-3-3 |
| Radio Frequency Devices | 47 CFR Part 15, Subpart B, Class B |
| Digital Apparatus | ICES-003 Issue 6, Class B |
| Cordless accessories | |
| CR2278 Presentation Cradle, Spare Battery, Micro USB Cable | |
| Decode capabilities3 | |
| Input Voltage Range | DS2208/DS2278 and Cradle: 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply |
| 1D | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
| 2D | PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes |
| Warranty | 5 Year |
| Utilities and management | |
| 123Scan | Programs scanner parameters, upgrades firmware, provides scanned barcode data and prints reports. www.zebra.com/123Scan |
| Symbol Scanner SDK | Generates a fully-featured scanner application, including documentation, drivers, test utilities and sample source code. www.zebra.com/scannersdkforwindows |
| Scanner Management Service (SMS) | Remotely manages your Zebra scanner and queries its asset information. www.zebra.com/sms |
| Decode ranges (Typical)4 | |
| Code 39 | Resolution: 5 mil
Near: .2in./.5cm Far: 6.0 in/15.2 cm. |
| Code 128 | Resolution: 5 mil
Near: .6in./1.5 cm. Far: 4.0 in./10.1 cm |
| PDF417 | Resolution: 6.7 mil
Near: .8 in./2.0 cm Far: 5.7 in/14.5 cm |
| UPC | Resolution: 13 mil (100%)
Near: .5 in./.1.3 cm Far: 14.5 in./36.8 cm. |
| Data Matrix | Resolution: 10 mil
Near: .3in./.8 cm. Far: 6.2 in./15.7 cm |
| QR | Resolution: 20 mil
Near: .0 in./.0cm Far: 11 in./27.9 cm. |
