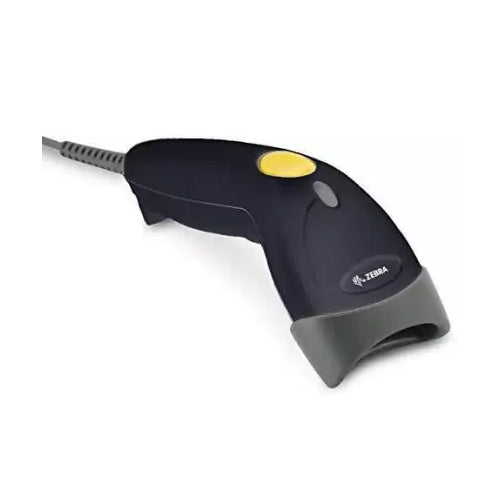

Zebra LS1203 Handheld Reader | 1D Laser Barcode Scanner | USB/RS232
Review: 5 - "A masterpiece of literature" by , written on May 4, 20020
Great

Zebra LS1203 Handheld Reader | 1D Laser Barcode Scanner | USB/RS232

Available:In Stock


Rs. 2,517.00

(Tax & Fright Extra)

Price Excluded GST Tax & Shipping

Click Here For Bulk Enquiry

+91 8411958300




info@srkinnovations.com

  • Brand : Zebra
  • Model Name : LS1203
  • Type : 1D
  • Special Feature : Handheld
  • Interface : USB
  • Interface (Optional) : RS232
  • Connectivity : Wired
  • Weight : 122 g
  • Warranty : 3 Year Warranty in all products
  • SDK and APIs are available for support
X

 The Zebra LS1203 Handheld 1D Laser Barcode Scanner delivers high-quality laser scanning, user-friendly ergonomics, and durability at an affordable price. Designed to meet the needs of small businesses, the LS1203 provides the performance and features needed to significantly reduce data entry errors and boost productivity day in and day out in gift shops, boutiques, sporting goods, jewelers, video stores, florists, and other small local retailers. Easy and comfortable to use, this high-value cost-effective scanner offers the reliability and investment protection that have made Zebra the global leader in handheld barcode scanning.

Manual keying is eliminated, reducing cashier errors and ensuring that your customers are charged the correct amount. The result is faster checkout, increased customer satisfaction, and a quick return on investment. In the back room, the LS1203 automates paper-based processes, such as inventory management, translating into more accurate information and less time spent on day-to-day administrative tasks — and more time spent serving customers.

Durable construction combined with future-proofing

With a single board construction and durable scan element, the LS1203 can easily stand up to daily use and those inevitable drops. With everyday operations you can count on, the LS1203 ensures minimal maintenance costs and maximum uptime. And integrated multiple interfaces provide the investment protection you need to ensure that the scanner you buy today will work with tomorrow’s POS system.

Proven quality you can trust

When you choose the LS1203, you receive the added assurance of purchasing a product from Zebra — the global leader in handheld bar code scanning with millions of scanners in use every day by the world’s largest retailers worldwide. And since even the most durable products require a maintenance plan and support strategy, Zebra has designed a full complement of service offerings to help you protect your investment and maintain peak performance.

Increased productivity from the start

For point-of-sale check-out applications, the LS1203 provides the power to improve operational efficiencies right out of the box. The plug-and-play design virtually eliminates installation hassles. The intuitive ergonomic design eliminates training requirements — employees are up and running in minutes.

 The Zebra LS1203 Handheld 1D Laser Barcode Scanner delivers high-quality laser scanning, user-friendly ergonomics, and durability at an affordable price. Designed to meet the needs of small businesses, the LS1203 provides the performance and features needed to significantly reduce data entry errors and boost productivity day in and day out in gift shops, boutiques, sporting goods, jewelers, video stores, florists, and other small local retailers. Easy and comfortable to use, this high-value cost-effective scanner offers the reliability and investment protection that have made Zebra the global leader in handheld barcode scanning.

Manual keying is eliminated, reducing cashier errors and ensuring that your customers are charged the correct amount. The result is faster checkout, increased customer satisfaction, and a quick return on investment. In the back room, the LS1203 automates paper-based processes, such as inventory management, translating into more accurate information and less time spent on day-to-day administrative tasks — and more time spent serving customers.

Durable construction combined with future-proofing

With a single board construction and durable scan element, the LS1203 can easily stand up to daily use and those inevitable drops. With everyday operations you can count on, the LS1203 ensures minimal maintenance costs and maximum uptime. And integrated multiple interfaces provide the investment protection you need to ensure that the scanner you buy today will work with tomorrow’s POS system.

Proven quality you can trust

When you choose the LS1203, you receive the added assurance of purchasing a product from Zebra — the global leader in handheld bar code scanning with millions of scanners in use every day by the world’s largest retailers worldwide. And since even the most durable products require a maintenance plan and support strategy, Zebra has designed a full complement of service offerings to help you protect your investment and maintain peak performance.

Increased productivity from the start

For point-of-sale check-out applications, the LS1203 provides the power to improve operational efficiencies right out of the box. The plug-and-play design virtually eliminates installation hassles. The intuitive ergonomic design eliminates training requirements — employees are up and running in minutes.

Physical Characteristics

Dimensions

2.4 in. H x 7.1 in. L x 2.4 in. W 6.2 cm H x 18 cm L x 6 cm W

Weight (w/o cable)

Approximately 4.3 oz. (122 g)

Voltage & Current

5 +/-10%VDC @ 100 mA (Stand by: <35 mA)

Power Source

Host power or external power supply

Color

Cash Register White or Twilight Black

User Environment

Operating Temp.

32° to 122° F/0° to 50° C

Storage Temp.

-40° to 158° F/-40° to 70° C

Humidity

5% to 95% relative humidity, non-condensing

Drop Specs

Withstands multiple 5 ft./1.524m drops to concrete

Ambient Lighting Tolerance

Tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions. Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED: 450 Ft Candles (4,844 Lux) Sunlight: 8000 Ft Candles (86,111 Lux)

Beeper Volume

User-selectable: three levels

Beeper Tone

User-selectable: three tones

ESD

Conforms to 15 kV air discharge and 8 kV of contact discharge

Warranty

The LS1203 is warranted against defects in workmanship and materials for a period of 3 years (36 months) from the date of shipment, provided that the product remains unmodified and is operated under normal and proper conditions. See full warranty for details.

Depth of Field

Paper Label



Code 39 - 5 mil

English: 0.25" - 5.00"
Metric: 0.50 -12.50cm

Code 39 - 7.5 mil

English: 0 - 7.75"
Metric: 0 - 19.68cm

Code 39 - 10 mil

English: 0 - 8.50"
Metric: 0 - 21.50cm

100% UPC - 13mil

English: 0 - 8.50"
Metric: 0 - 21.50cm

200% UPC - 26mil

English: 0 - 10.25"
Metric: 0 - 26.00cm

Performance Characteristics

Scanner Type

Bi-directional

Light Source (Laser)

650nm laser diode

Scan Rate

100 scans per second

Typical Working Distance

See chart below.

Print Contrast Min.

30% minimum reflectance

Roll (Tilt):

± 30° from normal

Pitch:

± 65°

Skew (Yaw):

± 60°

Decode Capability

UPC/EAN, UPC/EAN with Supplementals, UPC/EAN 128, Code 39, Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, IATA, GS1 DataBar (formerly RSS) variants, Chinese 2 of 5

Interfaces Supported

USB, RS-232; Keyboard Wedge

Regulatory

Electrical Safety

UL1950, CSA C22.2 No. 950, EN60950/IEC950

Laser Safety

IEC Class 1

EMI/RFI

FCC Part 15 Class B, ICES-003 Class B, European Union EMC Directi-ve, Australian SMA, Taiwan EMC, Japan VCCI/MITI/Dentori

Footnotes

1 - Roll (Tilt): Controlled by rotating the wrist clockwise or counterclockwise
2 - Pitch: Controlled by dropping or raising the wrist
3 - Skew (Yaw): Controlled by rotating the wrist from left to right or vice versa
4 - LED lighting with high AC ripple content can impact scanning performance
