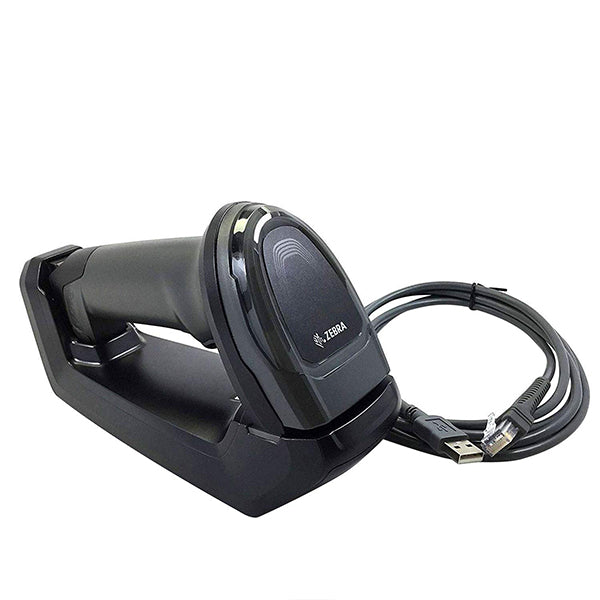

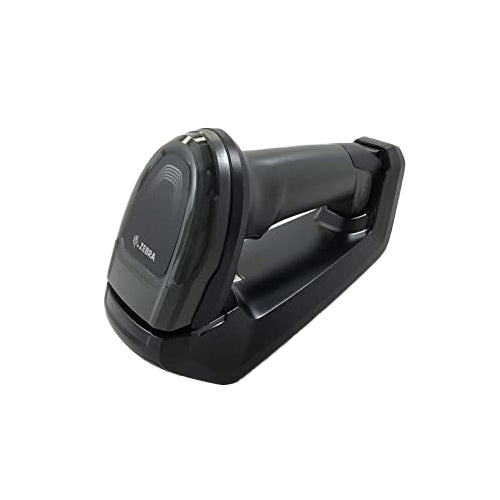

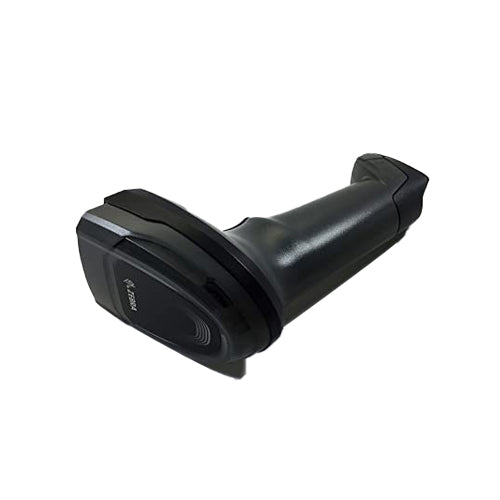

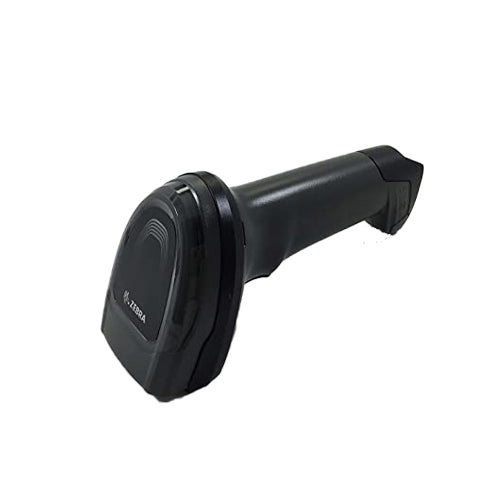

Zebra DS8178 1D/2D Wireless Barcode Scanner | USB RS32
Review: 5 - "A masterpiece of literature" by , written on May 4, 20020
Great

Zebra DS8178 1D/2D Wireless Barcode Scanner | USB RS32

Available:In Stock


Rs. 25,360.00

(Tax & Fright Extra)

Price Excluded GST Tax & Shipping

Click Here For Bulk Enquiry

+91 8411958300




info@srkinnovations.com

  • Brand : Zebra
  • Model Name : DS8178
  • Type : 1D/2D
  • Special Feature : Handheld
  • Reading Range : 61 cm
  • Interface : USB, RS232
  • Connectivity : Wireless
  • Weight : 235.3 g
  • Warranty : 3 Year Warranty in all products
  • SDK and APIs are available for support
X

The Zebra DS8178 1D/2D Wireless Barcode Scanner is a cutting-edge device designed to deliver exceptional performance and versatility in barcode scanning. Combining the latest in imaging technology with robust wireless capabilities, this scanner excels in capturing both 1D and 2D barcodes with remarkable speed and accuracy. Its wireless functionality provides seamless Bluetooth connectivity, allowing for a clutter-free work environment and enhanced mobility across various applications. Engineered for durability, the DS8178 is built to withstand harsh conditions, including drops and spills, making it ideal for demanding work environments.

The Zebra DS8178 1D/2D Wireless Barcode Scanner is a cutting-edge device designed to deliver exceptional performance and versatility in barcode scanning. Combining the latest in imaging technology with robust wireless capabilities, this scanner excels in capturing both 1D and 2D barcodes with remarkable speed and accuracy. Its wireless functionality provides seamless Bluetooth connectivity, allowing for a clutter-free work environment and enhanced mobility across various applications. Engineered for durability, the DS8178 is built to withstand harsh conditions, including drops and spills, making it ideal for demanding work environments.

PHYSICAL CHARACTERISTICS



Dimensions

Corded DS8108 and Cordless DS8178:

6.6 in. H x 2.6 in. W x 4.2 in. D

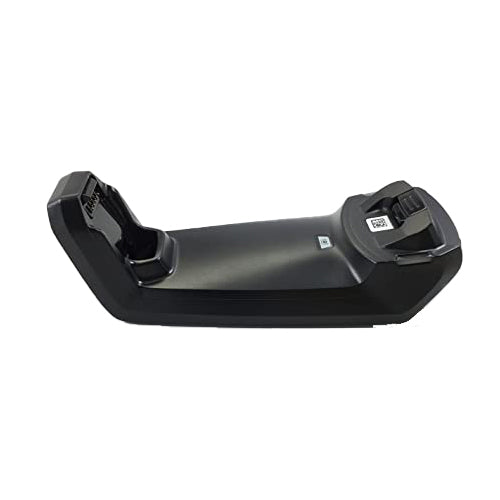

Standard Cradle:

2.8 in. H x 3.3 in. W x 8.3 in. D

7.1 cm. H x 8.4 cm. W x 21.1 cm. D

Presentation Cradle:

2.9 in. H x 3.7 in. W x 4.8 in. D

7.4 cm. H x 9.4 cm. W x 12.2 cm. D

Weight

Corded DS8108: 5.4 oz./154 g

Cordless DS8178: 8.3 oz./235.3 g

Desk/Wall Cradle: 7.1 oz./202 g

Presentation Cradle: 6.5 oz./182 g

Input Voltage Range

DS8108:

4.5 to 5.5VDC

DS8178 Cradles:

5V: 4.7 to 5.5VDC;

12V: 10.8 to 13.2VDC

Current

Corded DS8108 Operating Current at Nominal Voltage (5.0V): 450 mA

Cradle:

470 mA (typical) Standard USB; 743mA (typical) 12V



Color



Nova White, Twilight Black



Supported Host Interfaces



USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485

Keyboard Support

Supports over 90 international keyboards

FIPS Security Certification

Certified Compliant with FIPS 140-2

PERFORMANCE CHARACTERISTICS



Light Source

Aiming Pattern: Circular 617nm Amber LED

Illumination

(2) 645nm Red LEDs

Imager Field of View

48° H x 37° V Nominal

Image Sensor

1,280 x 960 pixels

Minimum Print Contrast

16% minimum reflective difference

Skew/Pitch Roll Tolerance

+/- 60°; +/- 60°; 0-360°

IMAGING CHARACTERISTICS



Graphics Format Support

Images can be exported as Bitmap, JPEG or TIFF

Image Quality

109 PPI on an A4 document



Minimum Element Resolution

Code 39 - 3.0 mil; Code 128 - 3.0 mil; Data Matrix - 6.0 mil; QR Code - 6.0 mil; PDF - 5.0 mil

USER ENVIRONMENT



Operating Temperature

32° to 122° F/0° to 50° C

Charging Temperature

32° to 104° F/0° to 40° C

Storage Temperature

-40° to 158° F/-40° to 70° C

USER ENVIRONMENT (CONTINUED)



Humidity

5% to 95% RH, non-condensing

Drop Specification

Designed to withstand multiple drops at 6.0 ft./1.8 m to concrete

Tumble Specification

Designed to withstand 2,000 tumbles in 1.5 ft./0.5 m tumbler

Environmental Sealing

IP42

Electrostatic Discharge (ESD)

DS8108/DS8178 and Cradles: ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect

Ambient Light Immunity

0 to 9,000 Foot Candles/0 to 96,840 Lux

RADIO SPECIFICATIONS



Bluetooth Radio

Standard Bluetooth Version 4.0 with BLE: Class 1 330 ft. (100m) and Class 2 33 ft. (10m), Serial Port and HID Profiles

Adjustable Bluetooth Power

Class 1: Output power adjustable down from 4 dBm in 8 Steps

Class 2: Output power adjustable down from 2 dBm in 8 Steps

BATTERY



Battery Capacity/ Battery Type

2,500 mAh Li-Ion Power Precision+ Battery

Scans Per Battery Charge

65,000 (1 scan per second)

Operating Time Per Full Charge

83 hours

Typical Charge Time from Empty to Full Charge



Power Source

Desk/Wall Cradle

Presentation Cradle

Standard USB

7 hrs 45 min

9 hrs 15 min

BC1.2 USB

3 hrs

3 hrs 15 min

External 5V Source

4 hrs 30 min

5 hrs

External 12V Source

2 hrs 15 min

2 hrs 15 min

REGULATORY



Electrical Safety

EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07

Environmental

RoHS EN 50581

LED Safety

IEC 62471

IT Emissions

EN 55022 (Class B);

EN 55032 (Class B)

IT Immunity

EN 55024

Harmonic Current Emissions

EN 61000-3-2

Voltage Fluctuation and Flicker

EN 61000-3-3

Radio Frequency Devices

47 CFR Part 15, Subpart B, Class B

Digital Apparatus

ICES-003 Issue 6, Class B

ACCESSORIES

Standard Cradle, Presentation Cradle, Wall Mount Bracket, Spare Battery, Document Capture Stands

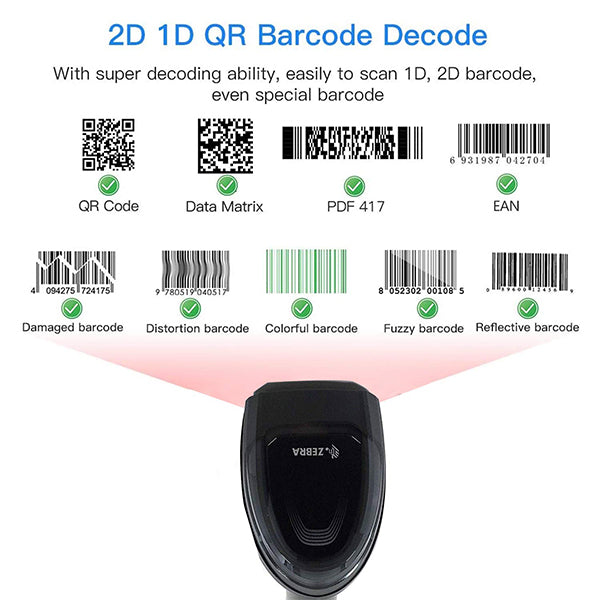

DECODE CAPABILITIES



1D

Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI

Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)

2D

PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes

Digimarc

Digital watermark technology, available April 2017
