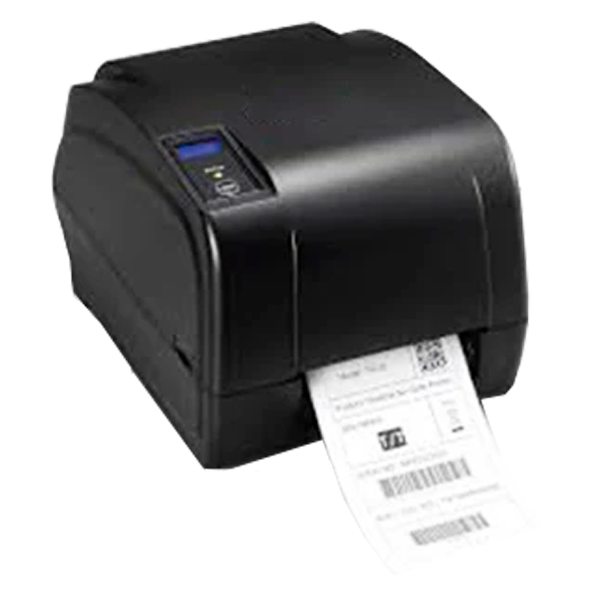

‎TSC TA210 Thermal Transfer & Direct Label Printer | 4 inch | 203 dpi | USB+Ethernet+RS232 | 2 year warranty
Review: 5 - "A masterpiece of literature" by , written on May 4, 20020
Great

‎TSC TA210 Thermal Transfer & Direct Label Printer | 4 inch | 203 dpi | USB+Ethernet+RS232 | 2 year warranty

Available:In Stock


Total Price : Rs. 12,710.00 (Rs. 14,997.80 Incl. of all taxes)

(Tax & Fright Extra)

Price Excluded GST Tax & Shipping

Click Here For Bulk Enquiry

+91 8411958300




info@srkinnovations.com

  • Brand : TSC
  • Model Name : TA210
  • Special Feature : Desktop
  • DPI : 203 DPI
  • Interface : USB+Etherne+RS-232
  • Max Print Width : 4 inch
  • Max Print Speed :127 mm/sec
  • Weight : 2.45 kg
  • Warranty : 2 Year Warranty in all products
  • SDK and APIs are available for support
X

The TSC TA-210  Thermal Transfer & Direct Label Printer is a reliable and cost-effective solution for businesses looking to streamline their labeling and barcode printing needs. Designed with a focus on performance and durability, this thermal transfer and direct thermal printer offers exceptional value, ensuring consistent and trouble-free operation with minimal maintenance. The printer is ENERGY STAR® qualified, making it energy-efficient and environmentally friendly.

Features :

    • Dual-motor gear-driven mechanism for long-lasting performance.
    • Supports TSPL-EZ™ printer language, compatible with EPL and ZPL.
    • Internally scalable True Type fonts for customizable printing.
    • Built-in 4 MB Flash memory and 8 MB SDRAM.
    • Expandable memory with microSD support up to 4 GB.
    • Interfaces: USB 2.0, RS-232, Centronics, and optional Ethernet or Bluetooth for flexible integration.
    • Adjustable sensors for various label types (gap, black mark, and reflective).
    • Free bundled labeling software and Windows drivers for seamless setup.
    • Complies with ENERGY STAR®, RoHS, and WEEE standards.

Advantages :

    • Low initial cost with affordable consumables like ribbons and labels.
    • Withstands voltage fluctuations and rugged environments.
    • Extended warranty: 2 years on the printer, ensuring peace of mind.
    • Handles various media types, including continuous, die-cut, fan-fold, and black mark labels.
    • Supports multiple barcodes (1D and 2D) for diverse applications.
    • Simple setup with a quick start guide, USB cable, and labeling software.
    • User-friendly operation with LED indicators and buttons.

Applications :

  • Print shipping labels, product tags, and compliance labels for efficient inventory and logistics management.
  • Create patient ID tags, prescription labels, and medical device barcodes.
  • Generate durable labels for product identification, tracking, and asset management.
  • Use in automobile service shops, walk-in shipping centers, and inventory control for stockrooms.
  • Print document tracking labels, ID badges, and event tickets.

The TSC TA-210  Thermal Transfer & Direct Label Printer is a reliable and cost-effective solution for businesses looking to streamline their labeling and barcode printing needs. Designed with a focus on performance and durability, this thermal transfer and direct thermal printer offers exceptional value, ensuring consistent and trouble-free operation with minimal maintenance. The printer is ENERGY STAR® qualified, making it energy-efficient and environmentally friendly.

Features :

    • Dual-motor gear-driven mechanism for long-lasting performance.
    • Supports TSPL-EZ™ printer language, compatible with EPL and ZPL.
    • Internally scalable True Type fonts for customizable printing.
    • Built-in 4 MB Flash memory and 8 MB SDRAM.
    • Expandable memory with microSD support up to 4 GB.
    • Interfaces: USB 2.0, RS-232, Centronics, and optional Ethernet or Bluetooth for flexible integration.
    • Adjustable sensors for various label types (gap, black mark, and reflective).
    • Free bundled labeling software and Windows drivers for seamless setup.
    • Complies with ENERGY STAR®, RoHS, and WEEE standards.

Advantages :

    • Low initial cost with affordable consumables like ribbons and labels.
    • Withstands voltage fluctuations and rugged environments.
    • Extended warranty: 2 years on the printer, ensuring peace of mind.
    • Handles various media types, including continuous, die-cut, fan-fold, and black mark labels.
    • Supports multiple barcodes (1D and 2D) for diverse applications.
    • Simple setup with a quick start guide, USB cable, and labeling software.
    • User-friendly operation with LED indicators and buttons.

Applications :

  • Print shipping labels, product tags, and compliance labels for efficient inventory and logistics management.
  • Create patient ID tags, prescription labels, and medical device barcodes.
  • Generate durable labels for product identification, tracking, and asset management.
  • Use in automobile service shops, walk-in shipping centers, and inventory control for stockrooms.
  • Print document tracking labels, ID badges, and event tickets.

Printing Model

TA210

Resolution 8 dots/mm (203 DPI)
Printing Method Thermal Transfer & Direct Thermal

Max. print speed

127 mm (5”)/second

Max. print width

108 mm (4.25”)

Max. print length

2,794 mm (110“)

Enclosure

ABS plastic

Physical dimension

224 mm (W) x 186 mm (H) x 294 mm (D)
8.82“ (W) x 7.32“ (H) x 11.57“ (D)

Weight

2.45 kg (5.4 lbs)

Label roll capacity

127 mm (5“) OD

Ribbon

300 m long, max. OD 67 mm, 1“ core (ink coated outside)

Ribbon width

40 mm ~ 110 mm (1.6” ~ 4.3”)

Processor

32-bit RISC CPU

Memory

• 4 MB Flash memory
• 8 MB SDRAM
• microSD card reader for Flash memory expansion, up to 4 GB

Interface

• USB 2.0
• RS-232 (factory option)
• Centronics (factory option)
• Internal Ethernet, 10/100 Mbps (factory option)
• Bluethooth (user option)

Power

External universal switching power supply
• Input: AC 100-240V, 1.8A, 50-60Hz
• Output: DC 24V, 2.5A, 60W

Operation switch,
button, LED

1 power switch, 1 feed button & 1 LED (3 colors: green, amber & red)

Sensors

• Transmissive gap sensor (position adjustable)
• Black mark reflective sensor (position adjustable)
• Ribbon end sensor
• Head open sensor

Real Time Clock

Standard

Internal fonts

• 8 alpha-numeric bitmap fonts
• Monotype Image® true type font engine with one CG Triumvirate Bold Condensed scalable font

Bar code

• 1D bar code
Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Inter
 leaved 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits
 add-on, MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Code 11
• 2D bar code
PDF-417, Maxicode, DataMatrix, QR code, Aztec, GS1 DataBar Composite Code

Font and barcode rotation

0, 90, 180, 270 degree

Printer language

TSPL-EZTM (Compatible to EPL, ZPL, ZPL II)

Media type

Continuous, die-cut, black mark, fan-fold, notched (outside/inside wound)

Media width

25.4 ~ 118 mm (1.0“ ~ 4.6“)

Media thickness

0.06 ~ 0.254 mm (2.36 ~ 10 mil)

Media core diameter

25.4 ~ 38 mm (1” ~ 1.5”)

Label length

10 ~ 2,794 mm (0.39“ ~ 110“)

Environment condition

Operation: 5 ~ 40°C, 25 ~ 85% non-condensing
Storage: -40 ~ 60°C, 10 ~ 90% non-condensing

Safety regulation

FCC Class A, CE Class A, CCC, ENERGY STAR®

Environmental concern

Comply with RoHS, WEEE

Accessories

• Windows labeling software CD disk
• Quick start guide
• USB cable
• Power cord
• External universal switching power supply
• Label spindle, fixing tab x 2
• Ribbon spindle x 2
• Ribbon paper core

Limited warranty

• Printer: 2 years
• Print head: 25 km (1 million inches) or 12 months which comes first
• Platen: 50 km (2 million inches) or 12 months which comes first

Factory options

• RS-232 serial interface
• 128 x 64 pixels graphic type LCD display with back light
• Centronics parallel interface
• Internal Ethernet interface (10/100 Mbps

Dealer options

• Peel-off module
• Guillotine cutter (full cut or partial cut)
User options
• External roll mount, media OD. 214 mm (8.4”) with 76.2 mm (3”) core
• Bluetooth module (serial interface)

User options

• 1.5“ core adapter x 2
• KP-200 Plus keyboard display unit
• KU-007 Plus programmable smart keyboard
