Zebra AN510 RFID UHF Antenna Reader | Circular | 865-868 MHz
Review: 5 - "A masterpiece of literature" by , written on May 4, 20020
Great
-48%
Zebra AN510 RFID UHF Antenna Reader | Circular | 865-868 MHz
Zebra AN510 RFID UHF Antenna Reader | Circular | 865-868 MHz

Zebra AN510 RFID UHF Antenna Reader | Circular | 865-868 MHz

Available:In Stock


Rs. 17,650.00 Rs. 34,500.00

(Tax & Fright Extra)

Price Excluded GST Tax & Shipping

Click Here For Bulk Enquiry

+91 8411958300




info@srkinnovations.com

  • Model Name : Zebra AN510
  • Connector Type : SMA female
  • Gain : 8.5 dBic
  • Frequency Range : 865 – 868 MHz
  • Weight : 0.75kg
  • SDK and APIs are available for support
X

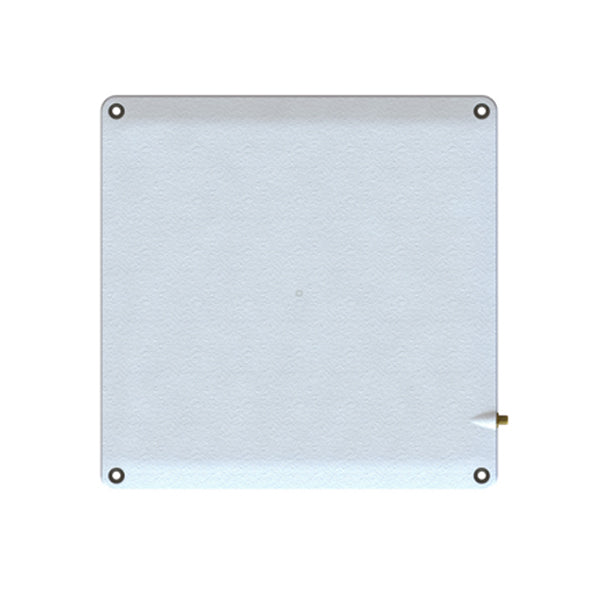

The Zebra AN510 RFID UHF Antenna is a compact, robust, and high-performance antenna designed to enhance RFID systems across a wide range of indoor and outdoor applications. Engineered with a sleek, low-profile design, the AN510 offers seamless integration in tight spaces while maintaining superior read performance. With IP67-rated protection, it is built to withstand challenging environments, including dust, moisture, and extreme temperatures, making it ideal for both industrial and retail environments. This antenna operates in the UHF frequency band, delivering precise, long-range RFID tag reading essential for applications such as inventory management, asset tracking, supply chain logistics, and retail operations.

The Zebra AN510 RFID UHF Antenna is a compact, robust, and high-performance antenna designed to enhance RFID systems across a wide range of indoor and outdoor applications. Engineered with a sleek, low-profile design, the AN510 offers seamless integration in tight spaces while maintaining superior read performance. With IP67-rated protection, it is built to withstand challenging environments, including dust, moisture, and extreme temperatures, making it ideal for both industrial and retail environments. This antenna operates in the UHF frequency band, delivering precise, long-range RFID tag reading essential for applications such as inventory management, asset tracking, supply chain logistics, and retail operations.

Polarization

Right-hand circular

Dimensions

250 mm x 250 mm x 14 mm/

9.85 in. x 9.85 in x 0.55 in.

Connector

SMA female

Connector Location

Side mounted

Mounting Options

Flush mount or VESA mount

Weight

1.6 lbs./0.75kg

Casing/Materials

UV-Resistant ABS

Frequency Ranges

EU: 865 – 868 MHz

US: 902 – 928 MHz

Gain

8.5 dBic

VSWR (Return Loss)

1.3:1

Front to Back

Ratio

20 dB

3 dB Beam Width

68° in both planes

Maximum Power

3 Watts

Axial Ratio

1 dB

Operating Temperature

-20° to +55°C/-4° to +131°F

Storage

Temperature

-30° to +65°C/-22° to +149°F

IP Sealing

IP67

Vibration

MIL-STD-810G

Humidity

72 Hours @ 85°C relative humidity
