Zebra-MC3300 RFID UHF Handheld Reader | 4" Touch Display | Android 11 | Read Range 6+Mtr | NFC+QR | 4GB+32GB | USB+WLAN+Bluetooth
(Tax & Fright Extra)
Price Excluded GST Tax & Shipping
- Model Name : Zebra-MC3300
- Interface : USB 2.0 High Speed, WLAN and Bluetooth
- Operating System : Android 11
- Memory : 4+32GB
- Touch Display: 4inch
- Reading Range : 6+ Mtr
- Weight : 680g
- 1 Year warranty in all products
- SDK and APIs are available for support

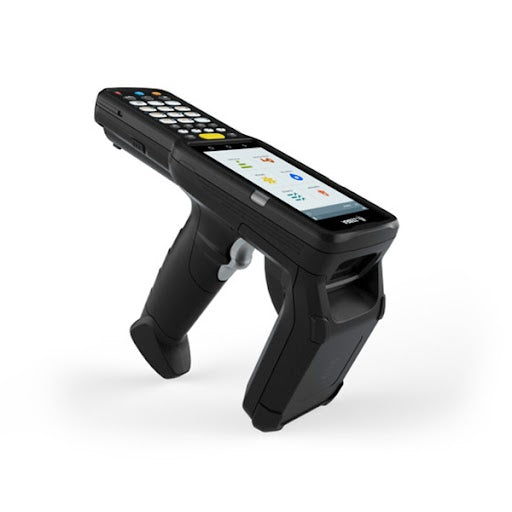

Zebra-MC3300 Integrated UHF Handheld Reader. The MC3330xR is packed with features to bring a new level of efficiency and accuracy to inventory and asset management applications. You get the same proven lightweight ergonomic design and superior RFID read performance, now with Zebra’s latest, most powerful and secure Android architecture. The ultra-powerful processor, integrated NFC reader and 35% larger capacity battery boost task speed and ease of use. Zebra’s signature rugged design ensures maximum uptime. And you can create intuitive Android applications that use the MC3330xR’s powerful computing platform, large touchscreen and physical keypad. The MC3330xR — the next evolution in handheld UHF/RAIN RFID readers.
Features :
- More rugged and ready for all-day business
- Power full shifts with the class-leading 7000mAh battery
- Lightweight and streamlined design
- Unparalleled computing power
Zebra-MC3300 Integrated UHF Handheld Reader. The MC3330xR is packed with features to bring a new level of efficiency and accuracy to inventory and asset management applications. You get the same proven lightweight ergonomic design and superior RFID read performance, now with Zebra’s latest, most powerful and secure Android architecture. The ultra-powerful processor, integrated NFC reader and 35% larger capacity battery boost task speed and ease of use. Zebra’s signature rugged design ensures maximum uptime. And you can create intuitive Android applications that use the MC3330xR’s powerful computing platform, large touchscreen and physical keypad. The MC3330xR — the next evolution in handheld UHF/RAIN RFID readers.
Features :
- More rugged and ready for all-day business
- Power full shifts with the class-leading 7000mAh battery
- Lightweight and streamlined design
- Unparalleled computing power
Physical Characteristics |
|
Dimensions |
6.45 in. L x 2.95 in. W x 8.31 in. D 164 mm L x 75 mm W x 211 mm D |
Weight |
24 oz./680 g (with handstrap) |
Display |
4-inch (800 x 480) WVGA; color display |
Imager Window |
Corning Gorilla Glass |
Touchpanel |
Corning Gorilla Glass touch panel with air gap; supports dual input mode with finger, gloved finger and stylus (conductive stylus sold separately) |
Backlight |
LED backlight |
Expansion Slot |
User accessible MicroSD with 32 GB SDHC and up to 512 GB SDXC |
Network Connections |
USB 2.0 High Speed (host and client), WLAN and Bluetooth |
Notification |
Side LEDs and audible tone |
Keypad |
Numeric (29 key), Function Numeric (38 key), Alpha Numeric (47 key) |
Voice |
PTT Express and Workforce Connect PTT Pro (Internal speaker, microphone and Bluetooth wireless headset support) |
Audio |
Built-in speaker and microphone |
Performance Characteristics |
|
CPU |
Qualcomm Snapdragonᵀᴹ 660 octa-core 2.2 GHz |
Operating System |
Upgradeable to Android 14 |
Memory |
4 GB RAM/32 GB Flash Memory Power All models ship with rechargeable Li-Ion, 3.6V, 7000mAh |
Power |
Precision+ battery; full charge under five (5) hours; hot swap support with temporary WLAN/Bluetooth session persistence Backwards compatibility with 5200mAh (2X) batteries |
User Environment |
|
Operating Temp |
-4° F to 122° F/-20° C to 50° C |
Storage Temp |
-40°F to 158°F/-40°C to 70°C |
Humidity |
5% to 95% RH (non-condensing) |
Drop Specifications |
Multiple 5 ft./1.5 m drops to concrete over the entire operating temperature range |
Tumble Specification |
1,000 1.6 ft./0.5 m tumbles |
Sealing |
IP54 |
Vibration Sine |
4g’s peak, 5hz to 2khz, Random: .04g²/hz, 20hz to 2khz |
Thermal Shock |
40° F to 158° F/-40° C to 70° C |
Electrostatic Discharge (ESD) |
+/- 15kV air, +/-8kV contact discharge +/-8kV indirect contact discharge |
Interactive Sensor Technology (IST) |
|
Motion Sensors |
3-axis accelerometer with MEMS gyroscope |
RFID |
|
Standards Supported |
EPC Class 1 Gen2; EPC Gen2 V2; ISO-18000-63 |
RFID Engine |
Zebra Proprietary Radio Technology |
Fastest Read Rate |
900+ tags/sec |
Nominal Read Range |
~19.7+ ft./~6+ m |
RFID Power Output |
0 dBm to +30 dBm |
RFID Antenna Type |
Integrated Circular Polarized |
Frequency Range |
865-928MHz *Specific regional and country settings supported upon country selection |
Barcode Scanning |
|
Scan Engine |
SE4770 with LED Aimer |
Wireless PAN |
|
Bluetooth |
Class 2, Bluetooth v5.0 with BR/EDR and Bluetooth Low Energy (BLE) Support |
Wireless LAN |
|
Radio |
IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v2/w/mc2; Wi-Fi™ certified; IPv4, IPv6, 2x2 MU-MIMO |
Data Rates |
5GHz: 802.11a/n/ac — up to 866.7 Mbps 2.4GHz: 802.11b/g/n — up to 300 Mbps |
Operating Channels (depending on Regulatory) |
Channel 1-13 (2412-2472 MHz): 1,2,3,4,5,6,7,8,9,10,11,12,13Channel 36-165 (5180-5825 MHz): 36,40,44,48,52 56,60,64,100, 104,108,112,116,120,124,128,132,136,140,144 ,149,153,157,161,165Channel Bandwidth: 20, 40, 80 MHzActual operating channels/ frequencies and bandwidths depend on regulatory rules and certification agency. |
Security and Encryption |
WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP, and AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES); WPA3 Enterprise (AES) — EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP and EAP-PWD; WPA3 Enterprise 192-bit Mode (GCMP-256) — EAP-TLS; Enhanced Open (OWE) |
Certifications |
WFA (802.11n, WMM-PS, 801.11ac, PMF); Wi-Fi Direct WMM-AC, Voice Enterprise |
Fast Roam |
PMKID caching; Cisco CCKM; 802.11r; OKC |
Accessories |
Single slot cradle with spare battery charger; 4-slot charge only cradle with 4-slot battery charger; 4-slot Ethernet cradle with 4-slot battery charger; 5-slot charge only cradle; 5-slot Ethernet cradle |
Regulatory |
|
EMI/EMC |
FCC Part 15 Subpart B Class B; ICES 003 Class B; EN 301 489-1; EN 301 489-3; EN 55024; EN 55032 Class B |
Electrical Safety |
UL 60950-1, CAN/CSA C22.2 No. 60950-1, IEC 60950-1, EN 60950-1 |
RF Exposure |
EU: EN 50364, EN 62369-1, EN 50566, EN 62311 USA: FCC Part 2, 1093 OET Bulletin 65 Supplement ‘C’ Canada: RSS-102 |
Environmental Compliance |
|
Environment |
• RoHS Directive 2011/65/EU; Amendment 2015/863 • REACH SVHC 1907/2006 A |
Warranty |
1 year |
