TSC TA220 Thermal Transfer & Direct Label Printer | 4 inch | 203 dpi | USB+Ethernet | 2 year warranty
Review: 5 - "A masterpiece of literature" by , written on May 4, 20020
Great

TSC TA220 Thermal Transfer & Direct Label Printer | 4 inch | 203 dpi | USB+Ethernet | 2 year warranty

Available:In Stock


Total Price : Rs. 13,662.00 (Rs. 16,121.16 Incl. of all taxes)

(Tax & Fright Extra)

Price Excluded GST Tax & Shipping

Click Here For Bulk Enquiry

+91 8411958300




info@srkinnovations.com

  • Brand : TSC
  • Model Name : TA220
  • Special Feature : Desktop
  • DPI : 203 dpi
  • Interface : USB+Ethernet
  • Max Print Width : 4 inch
  • Max Print Speed : 152.4 mm/sec
  • Weight : 2.45 kg
  • Warranty : 2 Year Warranty in all products
  • SDK and APIs are available for support
X

TSC TA220 Desktop Thermal Transfer Barcode Label Printer, a compact powerhouse designed for efficiency and accuracy. With its versatile capabilities, this printer is perfect for businesses of all sizes, delivering high-quality barcode labels with speed and precision.

TA220 SERIES 200 MHz 32-bit RISC processor with 8 MB SDRAM, 4 MB Flash memory, 127 mm (5”) OD internal media supply, optional external media holder supports 214 mm (8.4”)OD label rolls on 76.2 mm (3”) core. TA220 SERIES – Desktop Thermal Transfer Bar Code Printer SUPERIOR, FAST, AFFORDABLE PERFORMANCE, FEATURING LEGENDARY TSC DURABILITY

TSC TA220 Desktop Thermal Transfer Barcode Label Printer, a compact powerhouse designed for efficiency and accuracy. With its versatile capabilities, this printer is perfect for businesses of all sizes, delivering high-quality barcode labels with speed and precision.

TA220 SERIES 200 MHz 32-bit RISC processor with 8 MB SDRAM, 4 MB Flash memory, 127 mm (5”) OD internal media supply, optional external media holder supports 214 mm (8.4”)OD label rolls on 76.2 mm (3”) core. TA220 SERIES – Desktop Thermal Transfer Bar Code Printer SUPERIOR, FAST, AFFORDABLE PERFORMANCE, FEATURING LEGENDARY TSC DURABILITY

Model Number

 TA220 Barcode And Label

Resolution

 8 dots/mm(2-3dpi)

Print Method

 Thermal Transfer & Direct Label Printer

Max. print speed

 152.4 mm (6”)/second

Max. print width

 108 mm (4.25“)

Max. print length

 25,400 mm (1000“

Enclosure

ABS plastic

Physical dimension

211 mm (W) x 164 mm (H) x 286 mm (D)

Weight

2.5 kg (5.51 lbs

Label roll capacity

 127 mm (5“) OD

Ribbon

300 m long, max. OD 67 mm, 1” core (ink coated outside)
110 m long, max. OD 40 mm, 0.5” core (ink coated outside)

Ribbon width

40 mm ~ 110 mm (1.6” ~ 4.3”)

Processor

32-bit RISC CPU

Memory

• 128 MB Flash memory
• 64 MB SDRAM

Interface

• USB 2.0
• Internal Ethernet, 10/100 Mbps
• RS232
• USB host, for scanner or PC keyboard

Power

External universal switching power supply
• Input: AC 100-240V, 2.5A, 50-60Hz
• Output: DC 24V, 2.5A, 60W

Operation switch, button
LED

1 power switch, 1 feed and pause button & 1 LED (3 colors: green, amber & red)

Sensors

• Transmissive gap sensor
• Black mark reflective sensor (position adjustable)
• Ribbon end sensor
• Head open sensor

Real Time Clock

Standard

Buzzer

Standard

Internal fonts

• 8 alpha-numeric bitmap fonts
• Monotype ImageR true type font engine with one CG Triumvirate Bold Condensed scalable font

Bar code

1D bar code
Code 128UCC, Code 128 subsets A, B, C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with check digit,
Code 39, Code 39 with check digit, Code 93, EAN13, EAN8, UPCA, UPCE, EAN and UPC 2 (5) digits
add-on, Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China post, ITF14, Code 11, TELEPEN,
TELEPENN, PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS
2D bar code
GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF 417

Font and barcode
rotation

0, 90, 180, 270 degree

Printer language

TSPL-EZD (Compatible to EPL, ZPL, ZPL II, DPL)

Media type

Continuous, die-cut, black mark, fan-fold, notch (outside wound)

Media width

20 ~ 112 mm (0.8“ ~ 4.4“)

Media thickness

0.06 ~ 0.19 mm (2.36 ~ 7.48 mil)

Media core diameter

25.4 ~ 38 mm (1” ~ 1.5”)

Label length

5 ~ 25,400 mm (0.2“ ~ 1000“)

Environment condition

Operation: 5 ~ 40°C, 25 ~ 85% non-condensing
Storage: -40 ~ 60°C, 10 ~ 90% non-condensing

Safety regulation

BIS

Environmental concern

Comply with RoHS, REACH, WEEE

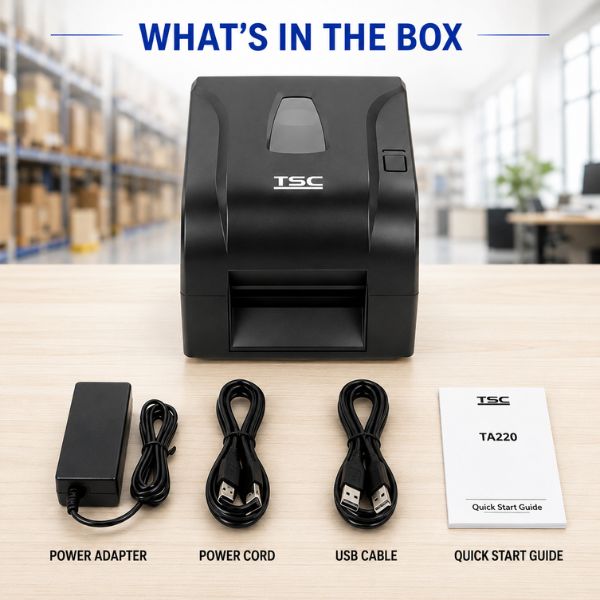

Accessories

• Windows labeling software CD disk
• Quick start guide
• USB cable
• Power cord

Limited warranty

• Printer: 2 years
• Print head: 25 km (1 million inches) or 12 months which comes first
• Platen: 50 km (2 million inches) or 12 months which comes first

Dealer options

• Peel-off module
• Guillotine cutter (full cut and partial cut)

User options

• External roll mount, media OD. 214 mm (8.4”) with 76.2 mm (3”) core
• KP-200 Plus keyboard display unit
