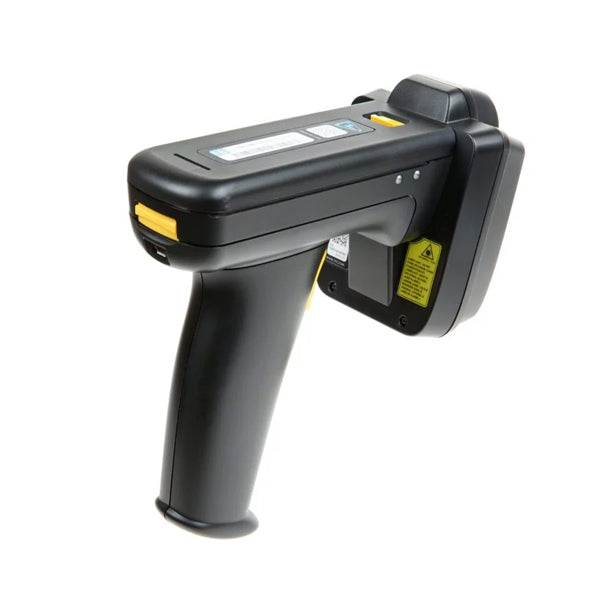

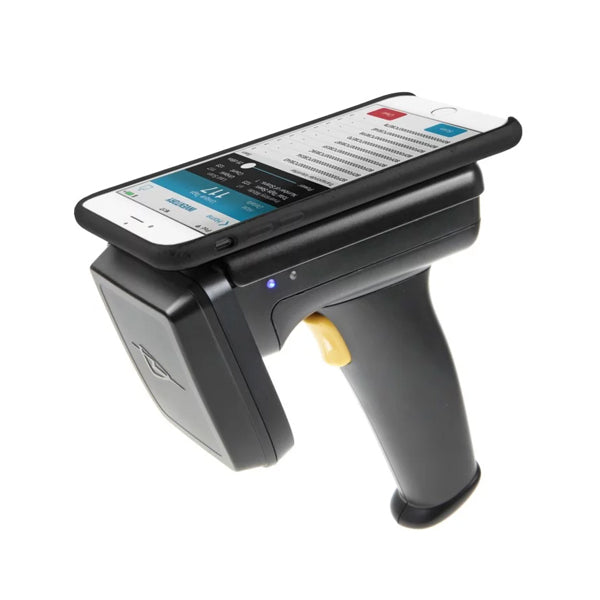

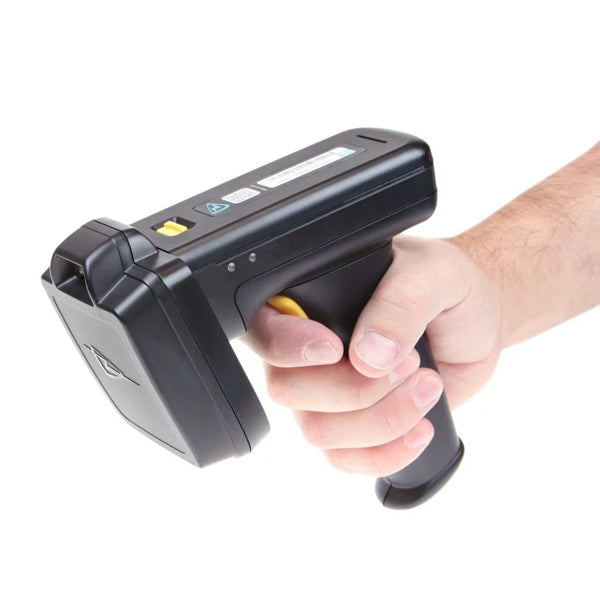

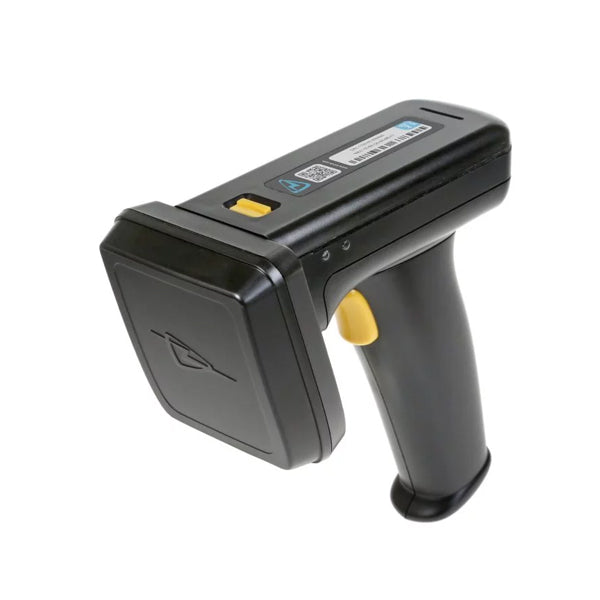

TSL 1128 Bluetooth UHF RFID Handheld Reader | Android, iOS and Windows | Read Range upto 5.5 Mtr | NFC+QR | Micro USB+Bluetooth
Review: 5 - "A masterpiece of literature" by , written on May 4, 20020
Great

TSL 1128 Bluetooth UHF RFID Handheld Reader | Android, iOS and Windows | Read Range upto 5.5 Mtr | NFC+QR | Micro USB+Bluetooth

Available:In Stock


Rs. 122,650.00 Rs. 137,650.00

(Tax & Fright Extra)

Price Excluded GST Tax & Shipping

Click Here For Bulk Enquiry

+91 8411958300




info@srkinnovations.com

  • Model Name : TSL 1128
  • Interface : Micro USB+ Bluetooth
  • Operating System : Android, iOS, and Windows
  • Memory : Optional Micro SD card (max 32GB capacity)
  • Reading Range : up to 5.5 Mtr
  • Weight :375g
  • 1 Year warranty in all products
  • SDK and APIs are available for support
X

The new TSL 1128 Bluetooth UHF Handheld Reader is designed to read and write to EPC Class 1 Gen 2 (ISO18000-6C) UHF transponders and communicates with a variety of host devices via Bluetooth wireless technology.  With its Impinj R2000 core and range of interchangeable high-performance antennas 1128 performs like no other reader, giving the user the highest levels of flexibility currently available in today’s market.  The reader can be configured with class-leading high-performance 2D data scanning to bring unparalleled data collection capabilities to connected devices.

Multi-Platform 1128 brings high-performance UHF RFID scanning to devices running a wide range of Operating Systems including Android, iOS, Windows Mobile, WinCE, and Windows XP/Vista/7/8. The 1128 Bluetooth UHF RFID Reader is compatible with Bluetooth-enabled host devices including enterprise handhelds, consumer phones, touchscreen MP3 players, tablets, and PCs. Almost any small device can be attached to the 1128 Bluetooth UHF RFID Reader using a combination of the 1128 Accessory Mount and commercially available device cases.  The Accessory Mount securely holds the device in place, yet slides on and off the reader's body in one quick action.



The new TSL 1128 Bluetooth UHF Handheld Reader is designed to read and write to EPC Class 1 Gen 2 (ISO18000-6C) UHF transponders and communicates with a variety of host devices via Bluetooth wireless technology.  With its Impinj R2000 core and range of interchangeable high-performance antennas 1128 performs like no other reader, giving the user the highest levels of flexibility currently available in today’s market.  The reader can be configured with class-leading high-performance 2D data scanning to bring unparalleled data collection capabilities to connected devices.

Multi-Platform 1128 brings high-performance UHF RFID scanning to devices running a wide range of Operating Systems including Android, iOS, Windows Mobile, WinCE, and Windows XP/Vista/7/8. The 1128 Bluetooth UHF RFID Reader is compatible with Bluetooth-enabled host devices including enterprise handhelds, consumer phones, touchscreen MP3 players, tablets, and PCs. Almost any small device can be attached to the 1128 Bluetooth UHF RFID Reader using a combination of the 1128 Accessory Mount and commercially available device cases.  The Accessory Mount securely holds the device in place, yet slides on and off the reader's body in one quick action.



Physical and Environmental Characteristics



Dimensions (LxWxH):

16.0 cm x 7.7 cm x 16.9 cm – Trigger handle.
16.0 cm x 7.7 cm x 9.7 cm – Slimline grip.

Weight

375 g / 13.2 oz (including battery & trigger handle).

User input

Trigger button

User feedback

Speaker, vibration motor, LED

Power

Removable, rechargeable 3.7V, 2400mAh, 8.9Wh Lithium Polymer battery pack

Minimum operating time1

Light use2 : Moderate
use3 : Heavy
use4 : 6 hrs 3.5 hrs 1.5 hrs

Enclosure materials

Polycarbonate

Performance Characteristics



RFID engine

TSL® custom module with embedded Impinj R2000

Communication protocols

TSL® ASCII 2.0 parameterised command set Impinj binary.

Memory

Optional Micro SD card (maximum 32GB capacity supported). Up to 500 million date and time stamped EPCs can be stored on a 32GB Micro SD card (separate purchase from alternative supplier).

Compatible Host devices (Bluetooth)

Any Bluetooth Host5 supporting the Serial Port Profile (SPP) or Human Interface Device (HID) profile (Android, iOS, Linux, Mac, Windows). See Bluetooth Mode Comparison.

Compatible Host devices (USB)

Any USB host with FTDI VCP driver support (Windows, Linux, Mac, Android).

Environmental



Operating Temp

-10°C to 40°C (14°F to 104°F).

Charging Temp

5°C to 40°C (41°F to 104°F)

Storage Temp

Less than 1 month at -20°C to +45°C (-4°F to 113°F).
Less than 6 months at -20°C to +35°C (-4°F to 95°F)

Humidity

5% to 85% non-condensing

Drop Spec

Multiple drops to concrete: 4 ft./1.2 m ambient, 3ft / 0.9m across the operating temperature range

Tumble

500 0.5 metre tumbles at room temperature (1,000 cycles)

Environmental Sealing

IP54

Electrostatic Discharge (ESD)

± 15kVdc air discharge; ± 8kVdc contact discharge

MIL-STD 810F

Meets and exceeds applicable MIL-STD 810F for drop, tumble and sealing.

RFID Performance



Standards supported

EPC Class 1 Gen 2

Nominal read range

Up to 5.5 m (18 ft)

Nominal write range

Up to 2 m (6.5 ft)

Field

150-degree forward facing (approx.) measured from front of device

Antenna

Detachable, Circularly Polarized with optional 2D scanner

Frequency Range

EU: 865-868MHz; US: 902-928MHz. See Page 5 for other regions

Maximum Output Power

Up to 29 dBm (region dependent) + 3.0 dBiC Antenna

Antenna options

High Performance CP. High Performance CP with 2D Imager

Barcode Scanning



Optional 2D Barcode Engine

Optional TSL® custom 2D Barcode Scan Engine module.

Sensor Resolution

1280 x 960 pixels, rolling shutter

Field of View

Horizontal: 44.5°, vertical: 33.5°

Focal Distance

From front of engine: 15.24 cm (6 in.)

Aiming LED

Green LED

Illumination

1 warm white LED

Symbologies Supported

1D: All major codes
2D: PDF417, MicroPDF417, Composite, RSS, TLC39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX)

Communication



Bluetooth

Bluetooth Version 2.1

Bluetooth Frequency Range

2.4 - 2.4835 GHz

Bluetooth Profiles

SPP Profile, HID Profile, Apple iAP

Bluetooth Power

Class 2

Bluetooth TX Power

3 dBm.

Bluetooth Range8

30 m.

Bluetooth Pairing

PIN, Simple Secure Pairing, NFC OOB Pairing

Peripherals and Accessories



External interface

MicroUSB connector for battery charging, and USB connectivity

USB operating modes

Tethered for real time data capture in conjunction with SmartWedge software. Download of stored scan data.

Optional charger

TSL® 2136 4-Slot desktop charger

Other Accessories

Adapter mounts are available for a variety of smartphones handheld terminals. Slimline Grip, Trigger Handle. See page 6 for more information

Regulatory



Regions

EU (CE), USA (FCC), Canada, Australia and more (see page 5 for details)

FCC ID

S6J1128

IC

8948A-1128

EMC

EN 55032:2015 +A11:2020 EN 55035:2017 +A11:2020 47 CFR Part 15B
ICES-003:2020 Issue 7

RF

EN 300 328 V2.2.2
EN 302 208 V3.2.0
EN 301 489-1 V2.2.3 EN 301 489-3 V2.1.1
EN 301 489-17 V3.2.4 47
CFR Part 15C 15.247
RSS-247 Issue 1

Electrical Safety IEC

62368-1:2018 EN 62368-1:2020 +A11:2020 UL 62368-1:2019 CAN/CSA C22.2 No. 62368-1:19

Environmental

2011/65/EU (RoHS 2) Restriction of the use of certain Hazardous Substances in electrical and electronic equipment 2015/863 (RoHS 3) Amendment to Annex II of 2011/65/EU

Warranty

1 year
