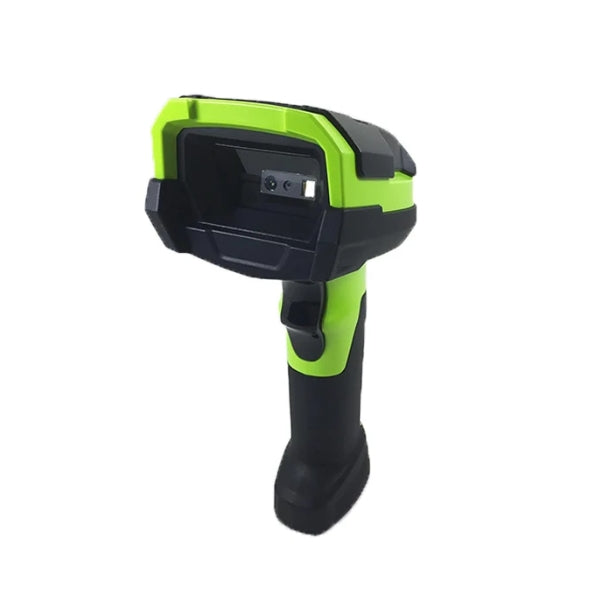

Zebra DS3608 Ultra-Rugged 1D/2D Wired Barcode Scanner | USB/RS232
Review: 5 - "A masterpiece of literature" by , written on May 4, 20020
Great

Zebra DS3608 Ultra-Rugged 1D/2D Wired Barcode Scanner | USB/RS232

Available:In Stock


Total Price : Rs. 30,500.00 (Rs. 35,990.00 Incl. of all taxes)

(Tax & Fright Extra)

Price Excluded GST Tax & Shipping

Click Here For Bulk Enquiry

+91 8411958300




info@srkinnovations.com

  • Brand: Zebra
  • Model Name: DS3608-SR3U4600K
  • TYPE (1D/2D): 1D/2D
  • SPECIAL FEATURE: Handheld
  • READING RANGE: 2.4 m
  • INTERFACE: USB
  • INTERFACE (Optional): RS232
  • CONNECTIVITY: Wired
  • WEIGHT: 309 g
  • 3 Year warranty in all products
  • SDK and APIs are available for support
X

Zebra ultra-rugged scanners earned their name for a reason-you won’t find a tougher family of scanners. Ready for the world’s harshest environments, the DS3600-HD has the
highest drop, tumble, and sealing specifications in its class. It can survive 10 ft./3 m drops to concrete and 7,500 tumbles.

The DS3600-HD is the first scanner in its class to offer a cradle with IP65 sealing. Its industrial charging contacts withstand 250,000 insertions.

The DS3600-HD is dustproof, can handle the force of jetting water, and be fully submerged in water. Built to withstand extreme heat, cold, and humidity, the DS3600-HD can be used anywhere—indoors, outdoors, and even in the freezer.

Zebra ultra-rugged scanners earned their name for a reason-you won’t find a tougher family of scanners. Ready for the world’s harshest environments, the DS3600-HD has the
highest drop, tumble, and sealing specifications in its class. It can survive 10 ft./3 m drops to concrete and 7,500 tumbles.

The DS3600-HD is the first scanner in its class to offer a cradle with IP65 sealing. Its industrial charging contacts withstand 250,000 insertions.

The DS3600-HD is dustproof, can handle the force of jetting water, and be fully submerged in water. Built to withstand extreme heat, cold, and humidity, the DS3600-HD can be used anywhere—indoors, outdoors, and even in the freezer.

Dimensions

Corded: 7.3 in. H x 3.0 in. W x 5.2 in. D

18.5 cm H x 7.6 cm W x 13.2 cm D

Cordless: 7.3 in. H x 3.0 in. W x 5.6 in. D

18.5 cm H x 7.6 cm W x 14.2 cm D

Weight

Corded: 10.9 oz./309 g

Cordless: 14.5 oz./411 g

Input Voltage

Range

Host powered: 4.5 VDC min., 5.5 VDC max.

External power supply: 11.4 VDC min., 12.6

VDC max.

Operating

Current

DS3608-HD (corded): 360 mA (RMS typical)

Standby Current

DS3608-HD (corded): 100 mA (RMS typical)

Color

Industrial Green

Supported Host

Interfaces

USB, RS232, Keyboard Wedge

Industrial Ethernet: EtherNet/IP, Profinet,

Modbus

TCP & Std TCP/IP

Battery

PowerPrecision+ 3100 mAh

Li-Ion rechargeable battery

User Indicators

Direct decode indicator; LEDs; beeper;

vibration

Scans per Full

Charge

100,000+

Image Capture

Basic

Illumination

Two (2) warm white light LEDs

Aimer

655 nm laser

Imager Field of

View

Horizontal: 31°, Vertical: 23°

Image Sensor

1,280 x 960 pixels

Minimum Print

Contrast

15% minimum reflective difference

Skew/Pitch/Roll

Skew: ± 60°

Pitch: ± 60°

Roll: ± 360°

Bluetooth Radio

Bluetooth Class 1, Version 4.0 (LE), serial port

(SPP)and HID profiles

Data Rate

3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth

1 Mbit/s (0.27 Mbit/s) for Low Energy

Radio Range

Direct line of sight in open air: Class 1:Minimum

300 ft. (100.0 m); Class 2: Minimum 30 ft. (10.0

m)
