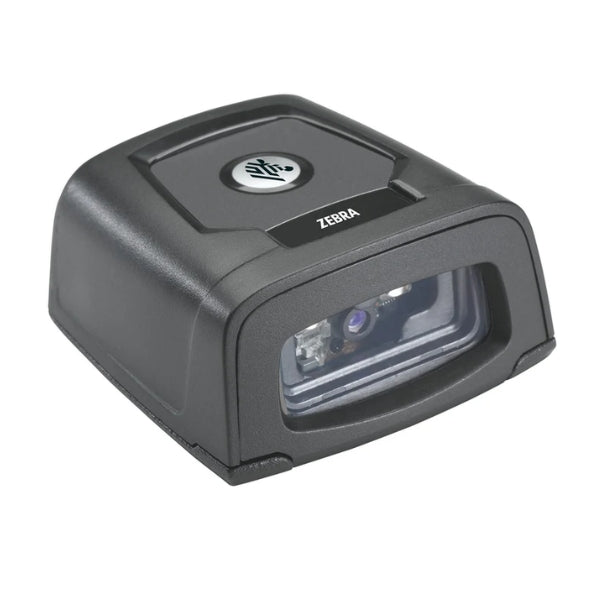

Zebra DS457 SR 1D & 2D Fixed Mount Barcode Scanner | USB/RS232
(Tax & Fright Extra)
Price Excluded GST Tax & Shipping
- Model Name: DS457 SR
- TYPE (1D/2D): 1D & 2D
- SPECIAL FEATURE: Fixed mount
- INTERFACE: USB
- INTERFACE(Optional): RS232
- CONNECTIVITY: Wireless
- WEIGHT: 111 g
- 3 Year warranty in all products
- SDK and APIs are available for support
The Zebra DS457-SR 1D & 2D Fixed Mount Barcode Scanner is a versatile and compact scanning solution designed to seamlessly integrate into a wide variety of applications, offering high-performance barcode scanning in a fixed, hands-free form factor. It supports both 1D and 2D barcodes, making it ideal for businesses that require fast and accurate data capture across different formats. With its small footprint, the DS457-SR can be mounted on counters, kiosks, conveyor belts, or manufacturing lines, providing a flexible solution for environments where space is limited.
This barcode scanner excels in industries like retail, manufacturing, logistics, and healthcare, offering quick and efficient barcode reading from various surfaces, including paper labels, plastic, and mobile device screens. Its omni-directional scanning capabilities ensure that barcodes can be captured from virtually any angle, enhancing workflow efficiency and reducing the need for manual positioning.
The Zebra DS457-SR 1D & 2D Fixed Mount Barcode Scanner is a versatile and compact scanning solution designed to seamlessly integrate into a wide variety of applications, offering high-performance barcode scanning in a fixed, hands-free form factor. It supports both 1D and 2D barcodes, making it ideal for businesses that require fast and accurate data capture across different formats. With its small footprint, the DS457-SR can be mounted on counters, kiosks, conveyor belts, or manufacturing lines, providing a flexible solution for environments where space is limited.
This barcode scanner excels in industries like retail, manufacturing, logistics, and healthcare, offering quick and efficient barcode reading from various surfaces, including paper labels, plastic, and mobile device screens. Its omni-directional scanning capabilities ensure that barcodes can be captured from virtually any angle, enhancing workflow efficiency and reducing the need for manual positioning.

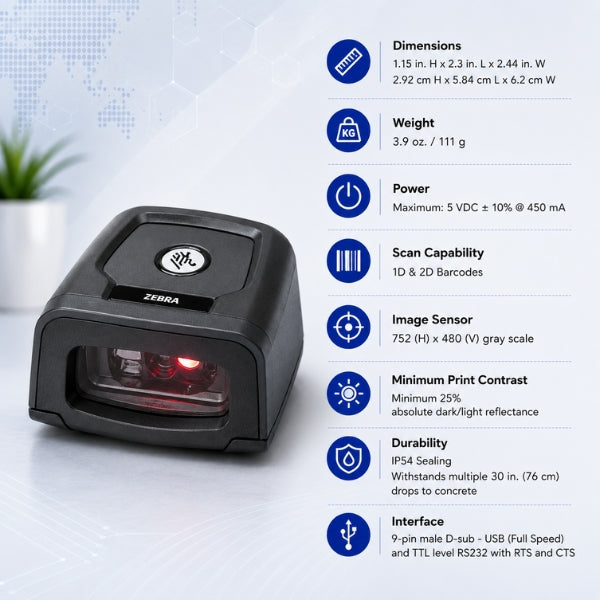

Dimensions |
1.15 in. H x 2.3 in. L x 2.44 in. W 2.92 cm H x 5.84 cm L x 6.2 cm W |
Weight |
3.9 oz./111 g |
Power |
Maximum: 5 VDC +/- 10% @ 450 mA |
Models |
DS457SR: 1-D and 2-D bar codes |
Sensor Resolution |
752 (H) x 480 (V) gray scale |
Imager Field of View |
DS457 SR and DL: 39.6° horizontal, 25.7° vertical DS457 HD and DP: 38.4° horizontal, 24.9° vertical |
Aiming Element |
655 ± 10 nm (VLD) |
Illumination Element |
625 ± 5 nm (LED) |
Minimum Print Contrast |
Minimum 25% absolute dark/light reflectance |
Operating Temp. |
-4° to 122° F /-20° to 50° C* (NOTE: Laser aimer disabled above 113° F /45° C) * See integration guide |
Storage Temp. |
-40° to 158° F /-40° to 70° C |
Humidity |
Operating: 95% RH, non-condensing at 50°C Storage: 85% RH, non-condensing at 70°C |
Sealing |
IP54 |
Drop Specification |
Withstands multiple 30 in./176 cm drops to concrete |
Ambient Light |
Total darkness to 9000 ft. candles ( 96,900 Lux) |
Image File Formats |
BMP, TIFF, JPG |
Interfaces Supported |
9-pin male D-sub - USB (full speed) and TTL level RS232 with RTS and CTS |
