TSC DA310 Direct Thermal Label Printer | 4 inch | 300 dpi | USB+Bluetooth | 2 year warranty

Available:In Stock


Rs. 17,850.00

(Tax & Fright Extra)

Price Excluded GST Tax & Shipping

Click Here For Bulk Enquiry

+91 8411958300




info@srkinnovations.com

  • Brand : TSC
  • Model Name : DA310
  • Special Feature : Desktop
  • DPI : 300 dpi
  • Interface : USB+Bluetooth
  • Max Print Width : 4 inch
  • Max Print Speed : 102 mm/sec
  • Weight : 1.5 kg
  • Warranty : 2 Year Warranty in all products
  • SDK and APIs are available for support
X

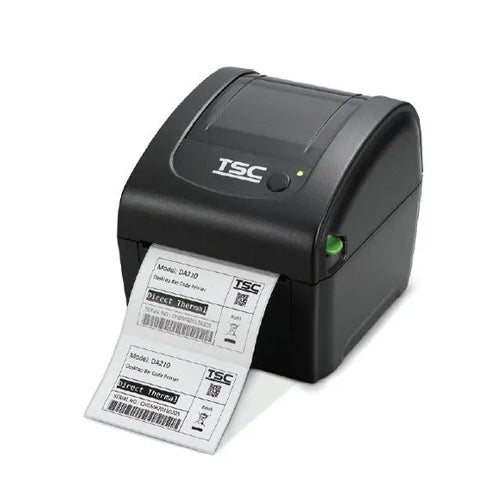

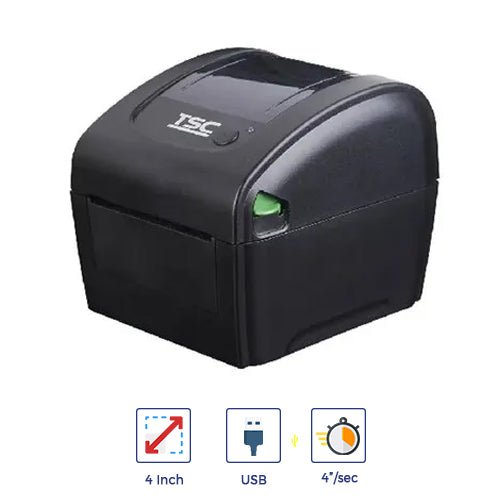

The TSC DA310 Label Printer offers direct thermal printing of labels. The benefits of direct thermal printing include eco-friendly, low power consumption and the ability to use a wide variety of label materials. This printer is powered by either USB or AC power connection, allowing you to have it mobile with battery backup built-in. The auto-cut feature allows for simple one-button cutting of your labels after printing. The TSC DA310 Label Printer is a direct thermal label printer and offers an extremely affordable solution for labelling purposes.



The TSC DA310 Label Printer offers direct thermal printing of labels. The benefits of direct thermal printing include eco-friendly, low power consumption and the ability to use a wide variety of label materials. This printer is powered by either USB or AC power connection, allowing you to have it mobile with battery backup built-in. The auto-cut feature allows for simple one-button cutting of your labels after printing. The TSC DA310 Label Printer is a direct thermal label printer and offers an extremely affordable solution for labelling purposes.



Printing Model

DA310

Resolution 12 dots/mm (300 DPI)
Printing Method Direct Thermal

Max. print speed

102 mm (4”)/second

Max. print width

105.7 mm (4.16“)

Max. print length

1,016 mm (40“)

Enclosure

Double-walled plastic

Physical dimension

172 mm (W) x 165 mm (H) x 195 mm (D)

6.77“ (W) x 6.50“ (H) x 7.68“ (D)

Weight

1.5 kg (3.31 lbs)

Label roll capacity

127 mm (5“) OD

Processor

32-bit RISC CPU

Memory

• 8 MB Flash memory
• 16 MB DRAM

Interface

• USB 2.0 (High speed mode)
• Internal Bluetooth (factory option)

Power

External universal switching power supply
• Input: AC 100-240V, 50-60Hz
• Output: DC 24V, 2.5A, 60W

Operation switch,
button, LED

1 power switch, 1 feed button & 1 LED (3 colors: green, amber & red)

Sensors

• Transmissive gap sensor
• Black mark reflective sensor
• Head open sensor

Internal fonts

• 8 alpha-numeric bitmap fonts
• Monotype Image® true type font engine with one CG Triumvirate Bold Condensed scalable font

Bar code

• 1D bar code
Code 39, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Interleave 2 of 5, EAN-8,
EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET,
RSS-Stacked, GS1 DataBar, Code 11, China Post
• 2D bar code
PDF-417, Maxicode, DataMatrix, QR code, Aztec, MicroPDF417

Font and barcode rotation

0, 90, 180, 270 degree0, 90, 180, 270 degree

Printer language

TSPL-EZD (Compatible to EPL, ZPL, ZPL II, DPL)

Media type

Continuous, black mark, fan-fold, notched (outside wound)

Media width

19 ~ 114 mm (0.7“ ~ 4.5“)

Media thickness

0.055 ~ 0.19 mm (2.16 ~ 7.48 mil)

Media core diameter

25.4 ~ 38 mm (1” ~ 1.5”)

Label length

10 ~ 1,016 mm
(0.39” ~ 40”)

Environment condition

Operation: 5 ~ 40°C, 25 ~ 85% non-condensing
Storage: -40 ~ 60°C, 10 ~ 90% non-condensing

Safety regulation

FCC Class A, CE Class A, RCM, EAC, CB, CCC, KC, BIS, UL, ENERGY STAR®

Environmental concern

Comply with RoHS, WEEE

Accessories

• Windows labeling software CD disk
• Quick start guide
• USB cable
• Power cord
• External universal switching power supply

Limited warranty

• Printer: 2 years
• Print head: 25 km (1 million inches) or 12 months which comes first
• Platen: 50 km (2 million inches) or 12 months which comes first

Factory options

• Internal Bluetoot

Dealer options

N/A

User options

• Windows labeling software CD disk
• Quick start guide
• USB cable
• Power cord
• External universal switching power supply
