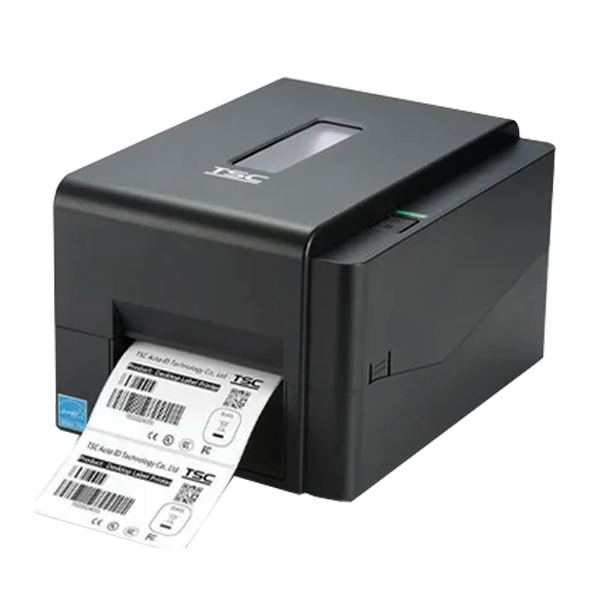

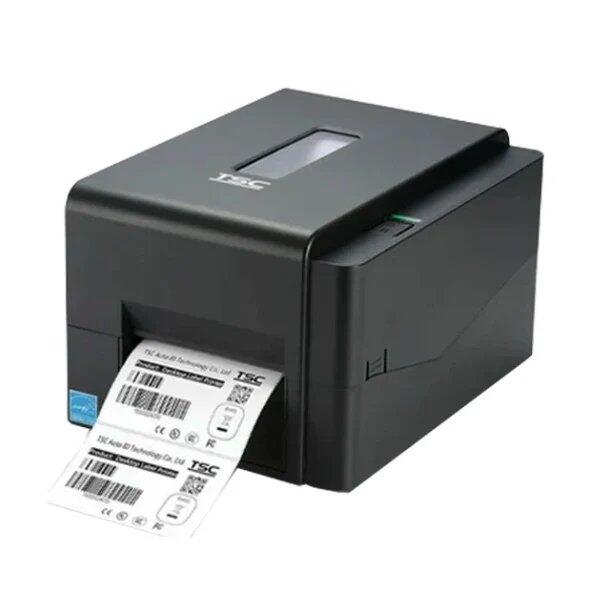

TSC TE310 Thermal Transfer Barcode Printer | 4.1 inch | 300 dpi | USB+RS232 | 2 year warranty
Review: 5 - "A masterpiece of literature" by , written on May 4, 20020
Great

TSC TE310 Thermal Transfer Barcode Printer | 4.1 inch | 300 dpi | USB+RS232 | 2 year warranty

Available:In Stock


Rs. 16,800.00

(Tax & Fright Extra)

Price Excluded GST Tax & Shipping

Click Here For Bulk Enquiry

+91 8411958300




info@srkinnovations.com

  • Brand : TSC
  • Model Name : TE310
  • DPI : 300dpi
  • Feature : Desktop
  • Max. Print Width : 105.7 mm
  • Print Speed : 127 mm/sec
  • Interface : USB+RS232
  • Weight : 2.5 kg
  • Warranty : 2 Year
  • SDK and APIs are available for support
X

The TSC TE310 Thermal Transfer Barcode Printer is a high-performance, reliable, and cost-effective printing solution designed for businesses that require precision and efficiency in barcode labeling. With a 300 dpi (12 dots/mm) resolution, it delivers crisp and clear labels, making it ideal for applications requiring high-density barcodes and small text. The printer supports both thermal transfer and direct thermal printing methods, ensuring versatility in label production.

Featuring a maximum print speed of 5 inches per second and a maximum print width of 4.16 inches, the TE310 is capable of handling diverse printing requirements. Equipped with a 32-bit RISC CPU, 128 MB Flash memory, and 64 MB SDRAM, it ensures smooth operation and fast processing of print jobs. The printer includes multiple connectivity options such as USB 2.0, RS232, internal Ethernet, and optional Bluetooth and Wi-Fi, making it adaptable to various business environments.

With a compact design and a weight of only 2.5 kg (5.51 lbs), the TE310 is an excellent choice for workplaces with limited space. It also supports a wide range of media types, sizes, and barcode formats, making it a versatile solution for different industries.

Advantages :

  1. With 300 dpi resolution, it delivers sharp, clear, and precise barcode labels, perfect for detailed graphics and small text.

  2. Supports thermal transfer for long-lasting labels and direct thermal for cost-effective short-term labels.

  3. Prints up to 5 inches per second, ensuring quick label production for high-volume tasks.

  4. Includes USB 2.0, RS232, internal Ethernet, and optional Bluetooth and Wi-Fi for seamless integration.

  5. Simple power switch, feed and pause button, and LED indicators for easy operation.

  6. Accommodates various label types, including continuous, die-cut, black mark, fan-fold, and notched labels.

  7. Backed by a 2-year warranty, with a print head warranty of 1 million inches or 12 months, ensuring long-term reliability.

  8. Equipped with gap, black mark, ribbon end, and head open sensors for precise label positioning and reduced errors.

  9. Complies with RoHS, REACH, and Energy Star® standards, making it environmentally friendly.

  10. Factory and user options like Wi-Fi, Bluetooth, peel-off module, and cutter enhance functionality based on business needs.

Uses:

  • Printing barcodes, QR codes, and 2D barcodes for various industry requirements

  • Generating shipping and inventory labels for warehouse and logistics operations

  • Creating custom product labels for branding and identification

  • Printing compliance labels required by industry regulations

  • Supporting on-demand printing for retail, healthcare, and manufacturing

The TSC TE310 Thermal Transfer Barcode Printer is an ideal choice for businesses that need high-resolution, durable, and cost-efficient barcode printing solutions. Its robust performance, versatile connectivity, and ease of use make it a valuable asset in multiple industries.

The TSC TE310 Thermal Transfer Barcode Printer is a high-performance, reliable, and cost-effective printing solution designed for businesses that require precision and efficiency in barcode labeling. With a 300 dpi (12 dots/mm) resolution, it delivers crisp and clear labels, making it ideal for applications requiring high-density barcodes and small text. The printer supports both thermal transfer and direct thermal printing methods, ensuring versatility in label production.

Featuring a maximum print speed of 5 inches per second and a maximum print width of 4.16 inches, the TE310 is capable of handling diverse printing requirements. Equipped with a 32-bit RISC CPU, 128 MB Flash memory, and 64 MB SDRAM, it ensures smooth operation and fast processing of print jobs. The printer includes multiple connectivity options such as USB 2.0, RS232, internal Ethernet, and optional Bluetooth and Wi-Fi, making it adaptable to various business environments.

With a compact design and a weight of only 2.5 kg (5.51 lbs), the TE310 is an excellent choice for workplaces with limited space. It also supports a wide range of media types, sizes, and barcode formats, making it a versatile solution for different industries.

Advantages :

  1. With 300 dpi resolution, it delivers sharp, clear, and precise barcode labels, perfect for detailed graphics and small text.

  2. Supports thermal transfer for long-lasting labels and direct thermal for cost-effective short-term labels.

  3. Prints up to 5 inches per second, ensuring quick label production for high-volume tasks.

  4. Includes USB 2.0, RS232, internal Ethernet, and optional Bluetooth and Wi-Fi for seamless integration.

  5. Simple power switch, feed and pause button, and LED indicators for easy operation.

  6. Accommodates various label types, including continuous, die-cut, black mark, fan-fold, and notched labels.

  7. Backed by a 2-year warranty, with a print head warranty of 1 million inches or 12 months, ensuring long-term reliability.

  8. Equipped with gap, black mark, ribbon end, and head open sensors for precise label positioning and reduced errors.

  9. Complies with RoHS, REACH, and Energy Star® standards, making it environmentally friendly.

  10. Factory and user options like Wi-Fi, Bluetooth, peel-off module, and cutter enhance functionality based on business needs.

Uses:

  • Printing barcodes, QR codes, and 2D barcodes for various industry requirements

  • Generating shipping and inventory labels for warehouse and logistics operations

  • Creating custom product labels for branding and identification

  • Printing compliance labels required by industry regulations

  • Supporting on-demand printing for retail, healthcare, and manufacturing

The TSC TE310 Thermal Transfer Barcode Printer is an ideal choice for businesses that need high-resolution, durable, and cost-efficient barcode printing solutions. Its robust performance, versatile connectivity, and ease of use make it a valuable asset in multiple industries.

Resolution

12 dots/mm (300 DPI)

Printing method

Thermal Transfer & Direct Thermal

Max. print speed

127 mm (5”)/secon

Max. print width

105.7 mm (4.16“)

Max. print length

11,430 mm (450“

Physical dimension

204 mm (W) x 164 mm (H) x 280 mm (D)

8.03“ (W) x 6.46“ (H) x 11.02“ (D)

Weight

2.5 kg (5.51 lbs)

Label roll capacity

127 mm (5“) OD

Ribbon

300 m long, max. OD 67 mm, 1” core (ink coated outside)

110 m long, max. OD 40 mm, 0.5” core (ink coated outside)

Ribbon width

40 mm ~ 110 mm (1.6” ~ 4.3”)

Processor

32-bit RISC CPU

Memory

• 128 MB Flash memory
• 64 MB SDRAM

Interface

• USB 2.0
• Internal Ethernet, 10/100 Mbps
• RS232
• USB host, for scanner or PC keyboard
• Internal Bluetooth 4.0 (factory option)
• External Bluetooth (user option)
• 802.11 a/b/g/n Wi-Fi (factory option)

Power

External universal switching power supply

Input: AC 100-240V, 2.5A, 50-60Hz

Output: DC 24V, 2.5A, 60W

Operation switch,
button LED

1 power switch, 1 feed and pause button & 1 LED (3 colors: green, amber & red)

Sensors

• Transmissive gap sensor
• Black mark reflective sensor (position adjustable)
• Ribbon end sensor
• Head open sensor

Real Time Clock

Standard

Buzzer

Standard

Internal fonts

• 8 alpha-numeric bitmap fonts
• Monotype Image® true type font engine with one CG Triumvirate Bold Condensed
 scalable font

Barcode

• 1D bar code
Code 128UCC, Code 128 subsets A, B, C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with
check digit, Code 39, Code 39 with check digit, Code 93, EAN13, EAN8, UPCA, UPCE, EAN
and UPC 2 (5) digits add-on, Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China post,
ITF14, Code 11, TELEPEN, TELEPENN, PLANET, Code49, Deutsche Post Identcode, Deutsche
Post Leitcode, LOGMARS
• 2D bar code
GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF 417

Font and
barcode rotation

0, 90, 180, 270 degree

Printer language

TSPL-EZD (Compatible to EPL, ZPL, ZPL II, DPL)

Media type

Continuous, die-cut, black mark, fan-fold, notched (outside wound)

Media width

20 ~ 112 mm (0.8“ ~ 4.4“)

Media thickness

0.06 ~ 0.19 mm (2.36 ~ 7.48 mil)

Media core diameter

25.4 ~ 38 mm (1” ~ 1.5”)

Label length

5 ~ 11,430 mm
(0.2“ ~ 450“

Environment condition

Operation: 5 ~ 40°C, 25 ~ 85% non-condensing
Storage: -40 ~ 60°C, 10 ~ 90% non-condensing

Safety regulation

FCC Class B, CE Class B, C-Tick Class B, UL,
cUL, TÜV/safety, CCC, EAC, CoC, BIS, KC,
Energy Star®

Environmental concern

Comply with RoHS, REACH, WEEE

Accessories

• Windows labeling software CD disk
• Quick start guide
• USB cable
• Power cord
• External universal switching power supply
• 1” label spindle, fixing tab x 2, 1.5” adapter x 2
• 1” ribbon spindle x 2 for 300M ribbon
• 1” ribbon paper core

Limited warranty

• Printer: 2 years
• Print head: 25 km (1 million inches) or 12 months which comes first
• Platen: 50 km (2 million inches) or 12 months which comes first

Factory options

• 802.11 a/b/g/n Wi-Fi
• Internal Bluetooth 4.0

Dealer options

• Peel-off module
• Guillotine cutter (full cut and partial cut)

User options

• External roll mount, media OD. 214 mm
(8.4”) with 76.2 mm (3”) core
• External Bluetooth module (serial interface)
• KP-200 Plus keyboard display unit
