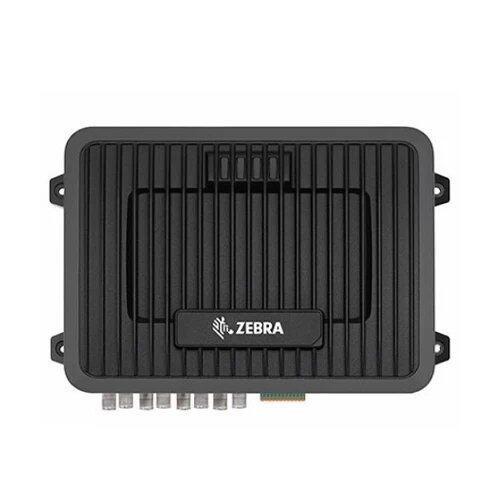

Zebra FX9600 RFID UHF Fixed Reader | 4 Port | Ethernet, USB, Serial
Review: 5 - "A masterpiece of literature" by , written on May 4, 20020
Great

Zebra FX9600 RFID UHF Fixed Reader | 4 Port | Ethernet, USB, Serial

Available:In Stock


Rs. 66,000.00

(Tax & Fright Extra)

Price Excluded GST Tax & Shipping

Click Here For Bulk Enquiry

+91 8411958300




info@srkinnovations.com

  • Model Name : Zebra FX9600
  • Interface : Ethernet (RJ45), USB Host and Client, Serial
  • Operating System: Linux
  • Memory: Flash 512 MB; DRAM 256 MB
  • Weight:2.13 kg
  • Antenna Port:4/8 monostatic (Optional)
  • 1 Year warranty in all products
  • SDK and APIs are available for support
X

Zebra FX9600 Fixed UHF RFID Reader brings a new level of cost efficiency to passive UHF asset tracking and inventory management, without compromising performance. You get all the features you need to achieve maximum visibility and efficiency in your high-volume, rugged environments-from industry leading read rates and exceptional read accuracy to superior RF sensitivity. When only industry-best RFID performance will do, the FX9600 delivers.

  • High RF Sensitivity for Superior Performance and Efficiency
  • Parse Data at the Edge With Embedded Applications
  • Easy, Low-Cost Deployment With Support for PoE and PoE+
  • Top of the line performance for high-volume rugged environments
  • Supports a Wi-Fi/Bluetooth dongle for direct wireless connectivity to your Wi-Fi network
  • Rugged Design for Tough Environments
  • Optional 4G LTE Cellular Modem With GPS Capabilities

Designed for tough environments, the rugged FX9600 can handle it all — damp dusty work areas, extreme heat and subzero temperatures. And with the eight-port model, you can cover more dock doors and portals with fewer readers, significantly lowering your investment, deployment and management costs.

Markets and Applications

  • Warehousing - Inventory management
  • Transportation and Logistics
  • High volume traffic
  • RFID-tagged pallets and cases
  • Retail
  • Item-level tagging
  • Pickup and delivery confirmation
  • Manufacturing
  • Asset tracking
  • Government

Zebra FX9600 Fixed UHF RFID Reader brings a new level of cost efficiency to passive UHF asset tracking and inventory management, without compromising performance. You get all the features you need to achieve maximum visibility and efficiency in your high-volume, rugged environments-from industry leading read rates and exceptional read accuracy to superior RF sensitivity. When only industry-best RFID performance will do, the FX9600 delivers.

  • High RF Sensitivity for Superior Performance and Efficiency
  • Parse Data at the Edge With Embedded Applications
  • Easy, Low-Cost Deployment With Support for PoE and PoE+
  • Top of the line performance for high-volume rugged environments
  • Supports a Wi-Fi/Bluetooth dongle for direct wireless connectivity to your Wi-Fi network
  • Rugged Design for Tough Environments
  • Optional 4G LTE Cellular Modem With GPS Capabilities

Designed for tough environments, the rugged FX9600 can handle it all — damp dusty work areas, extreme heat and subzero temperatures. And with the eight-port model, you can cover more dock doors and portals with fewer readers, significantly lowering your investment, deployment and management costs.

Markets and Applications

  • Warehousing - Inventory management
  • Transportation and Logistics
  • High volume traffic
  • RFID-tagged pallets and cases
  • Retail
  • Item-level tagging
  • Pickup and delivery confirmation
  • Manufacturing
  • Asset tracking
  • Government

Physical Characteristics

Dimension

10.75 in. L x 7.25 in. W x 2.0 in. D
27.3 cm L x 18.4 cm W x 5.0 cm D

Weight

Approx. 4.4 lbs/2.13 kg

Housing Material

Die-cast aluminum, meets IP53 standards

Visual Status Indicators

Multicolor LEDs: Power, Activity, Status and Applications

RFID Characteristics

Max Receive Sensitivity

-86 dBm monostatic

Air Protocols

ISO 18000-63 (EPC Class 1 Gen 2 V2)

Frequency (UHF Band)

Global Reader: 902 MHz - 928 MHz (Also supports countries that use a part of this band), 865 MHZ - 868 MHz
US (only) Reader: 902 - 928 MHz

Transmit Power Output

0dBm to +33.0dBm: PoE+, 24V External DC, Universal 24 VDC Power Supply; 0dBm to +31.5dBm: PoE, 12V External DC (4-port-models only), 24V External DC, Universal 24 VDC Power Supply

Connectivity

Communications

10/100 BaseT Ethernet (RJ45); USB Host and Client (Type A and B)*; Serial (DB9)

General Purpose I/O

4 inputs, 4 outputs, optically isolated (Terminal Block)

Power Supply

POE (802.3af)
POE+ (802.3at) +24V DC
(UL Approved)

Antenna Ports

FX9600-4: 4 monostatic ports; (Reverse Polarity TNC)
FX9600-8: 8 monostatic ports; (Reverse Polarity TNC)

Environmental

Operating Temp.

-4° to +131° F/-20° to +55° C

Storage Temp.

-40° to +158° F/-40° to +70° C

Humidity

5-95% non-condensing

Sealing

IP53

Hardware, OS and Firmware Management

Processor

Texas Instruments AM3505 (600 MHz)

Memory

Flash 512 MB; DRAM 256 MB

Operating System

Linux

Firmware Upgrade

Web-based and remote firmware upgrade capabilities

Management Protocols

RM 1.0.1 (with XML over HTTP/HTTPS and SNMP binding); RDMP

Network Services

DHCP, HTTPS, FTPS, SFPT, SSH, HTTP, FTP, SNMP and NTP

Network Stack

IPv4 and IPv6

Security

Transport Layer Security Ver 1.2, FIPS-140

API Support

Host Applications — .NET, C and Java EMDK
Embedded Applications — C and Java SDK

Environment

RoHS Directive 2011/65/EU; Amendment 2015/863
REACH SVHC 1907/2006

Warranty

FX9600-4 and FX9600-8 are warranted against defects in workmanship and materials for a period of one year (12 months) from date of shipment, provided the product remains unmodified and is operated under normal and proper conditions

Footnotes

Configurations without a USB hub require an external USB hub for full USB functionality.

Specifications are subject to change without notice
